Split by Barcode - Smart Splitter for Zapier
PDF4me Split by Barcode action revolutionizes document processing in Zapier with intelligent PDF splitting based on barcode detection and data matching. This powerful automation service scans PDF documents for QR codes, Data Matrix barcodes, and other barcode types, then intelligently divides the document at barcode locations based on customizable text filters—transforming how you handle batch-scanned documents, multi-customer invoices, and combined document packages. Whether you're processing hundreds of scanned forms with barcode separators, organizing bulk-scanned invoices, or automating document sorting from high-volume scanning operations, this feature eliminates manual document separation and enables sophisticated barcode-driven workflow automation that saves countless hours of tedious document organization work.
Authenticating Your API Request
To access the PDF4me Web API, every request must include proper authentication credentials. Authentication ensures secure communication and validates your identity as an authorized user.
.png)
Key Features
- Intelligent Barcode Detection: Automatically detect QR codes, Data Matrix, and all major barcode types
- Text-Based Filtering: Split based on specific text within barcode data using starts with, ends with, contains, or exact match
- Flexible Split Options: Choose to split before barcode page, after barcode page, or remove separator page entirely
- Multi-Document Processing: Handle batch-scanned documents with multiple barcode separators
- Format Support: Works with QR codes, Data Matrix, Code 39, Code 128, and more

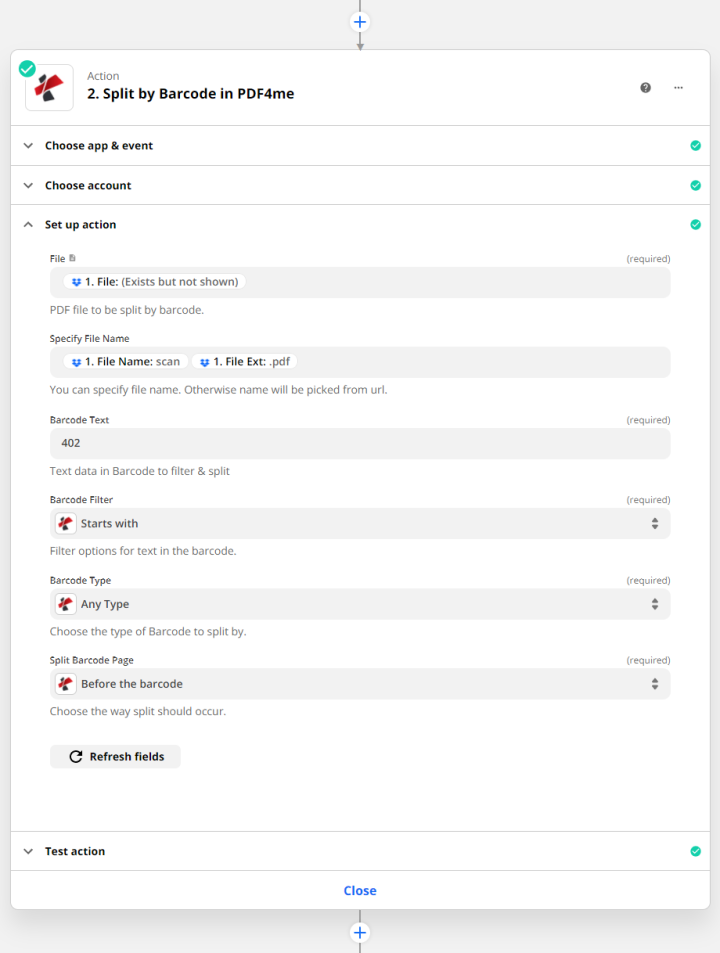

Parameters
Complete list of parameters for the Split by Barcode action. Configure these parameters to control the barcode-based splitting process.
Important: Parameters marked with an asterisk (***) are required and must be provided for the action to function correctly.
| Parameter | Type | Description | Example |
|---|---|---|---|
| File*** | File | Map the PDF file to be split using barcode detection. A URL containing a file can also be passed | [PDF File] |
| File Name | String | Specify output filename. If not provided, name will be picked from File field | split_documents |
| Barcode Text*** | String | Text data within barcode to filter and split on. System will search for this text in detected barcodes | INVOICE |
| Barcode Filter*** | Option | Text matching method for barcode data: Starts with - Barcode begins with specified text Ends with - Barcode ends with specified text Contains - Barcode contains specified text anywhere Exact - Barcode exactly matches specified text | Contains |
| Barcode Type*** | Option | Type of barcode to detect: Any Type - Detect all barcode formats QR code - Only detect QR codes Only Datamatrix - Only detect Data Matrix barcodes | Any Type |
| Split Barcode Page*** | Option | Where to split relative to barcode: Before the barcode - Split before page containing barcode After the barcode - Split after page containing barcode Remove the page containing the barcode - Split and exclude separator page | After the barcode |
Output
The PDF4me Split by Barcode action returns comprehensive output data for seamless Zapier workflow integration:
- Table
- JSON
- Schema
Table View
Response data in a structured table format:
| Parameter | Type | Description |
|---|---|---|
| File | URL | ZIP file containing all split PDF documents |
| File Name | String | The ZIP filename without extension |
| Full File Name | String | Complete ZIP filename with extension |
| File Extension | String | File extension (.zip) |
JSON Response Format
The raw JSON response from the action:
{
"File": "https://...",
"File Name": "split_documents",
"Full File Name": "split_documents.zip",
"File Extension": ".zip"
}
Schema View
The data structure and types of the response:
4 items
File: URL - ZIP file with split PDFs
File Name: String - Filename without extension
Full File Name: String - Complete filename
File Extension: String - File extension (.zip)
Workflow Examples
The PDF4me Split by Barcode action in Zapier provides comprehensive workflow templates designed for real-world business scenarios:
- Batch Invoice Splitting
- Multi-Form Document Separation
- Patient Record Separation
- Legal Document Separation
Automated Batch-Scanned Invoice Separation Workflow
Transform your accounts payable processing with automated invoice splitting from batch scans using barcode separators:
Complete Workflow Steps:
- Trigger: Batch-scanned PDF with multiple invoices uploaded to accounting system
- Scan: System detects QR code separator pages between invoices
- Filter: Match barcodes containing "INVOICE" or specific vendor codes
- Split: Divide PDF after each barcode separator page
- Extract: Unzip resulting individual invoice PDFs
- OCR: Extract invoice data from each separated document
- Route: Distribute invoices to appropriate approval workflows
- Archive: Store individual invoices with proper organization
Business Benefits:
- Eliminates 5+ hours weekly spent manually splitting scanned invoice batches
- Processes 100+ invoices from single scan automatically
- Reduces invoice processing errors by 98% with automated separation
- Accelerates accounts payable workflow by 85% with instant splitting
Automated Application Form Separation Workflow
Streamline your form processing with intelligent barcode-based separation of batch-scanned application forms:
Complete Workflow Steps:
- Trigger: Batch of scanned application forms with barcode separator sheets
- Detect: Identify barcode separator pages with applicant ID or form type
- Match: Filter barcodes starting with "APP-" followed by application number
- Separate: Split PDF before each barcode to isolate individual applications
- Extract: Obtain individual application PDFs from ZIP output
- Process: Run OCR and data extraction on each application
- Route: Direct applications to appropriate review queues
- Link: Associate extracted data with applicant records in database
Business Benefits:
- Automates separation of 200+ applications from single batch scan
- Reduces form processing time from days to minutes
- Eliminates manual sorting errors with barcode accuracy
- Maintains perfect application-to-applicant association with barcode tracking
Automated Patient Medical Record Organization Workflow
Optimize your healthcare document management with barcode-driven separation of batch-scanned patient records:
Complete Workflow Steps:
- Trigger: Batch-scanned patient documents with Data Matrix barcode separators
- Scan: Detect Data Matrix barcodes containing patient ID numbers
- Filter: Match barcodes with specific patient ID format (exact match)
- Split: Divide documents after each patient separator barcode
- Validate: Verify each split document corresponds to correct patient ID
- Index: Extract patient ID from barcode for filing
- Store: File individual patient documents in electronic health record system
- Audit: Log document separation for HIPAA compliance tracking
Business Benefits:
- Processes 500+ patient documents per batch with perfect accuracy
- Ensures HIPAA-compliant document organization with barcode verification
- Reduces medical records filing time by 90%
- Eliminates patient record misfiling with automated barcode association
Automated Legal Document Batch Processing Workflow
Enhance your legal operations with intelligent separation of batch-scanned case documents using barcode markers:
Complete Workflow Steps:
- Trigger: Batch-scanned legal documents with QR code case identifiers
- Detect: Identify QR codes containing case numbers and document types
- Filter: Match barcodes containing specific case number patterns
- Split: Separate documents at barcode pages, removing separator sheets
- Extract: Obtain individual case document PDFs
- Classify: Categorize documents by type based on barcode data
- Index: File documents in case management system by case number
- Track: Maintain audit trail of document separation for court records
Business Benefits:
- Automates organization of discovery documents, pleadings, and exhibits
- Processes entire case file batches in minutes instead of hours
- Ensures accurate case-to-document association with barcode validation
- Maintains court-admissible processing records with automated tracking
Industry Use Cases & Applications
- Accounts Payable & Finance
- Healthcare & Medical
- Legal & Professional Services
- Education & Administration
- Batch Invoice Processing: Split scanned invoice batches with barcode separators
- Receipt Sorting: Organize expense receipts by employee or department
- Bank Statement Separation: Divide multi-account statement scans
- Payment Documentation: Separate payment vouchers and supporting documents
- Patient Record Organization: Split batch-scanned patient files by ID
- Lab Results Separation: Divide multi-patient lab result batches
- Insurance Claims: Separate claim forms and supporting documentation
- Medical Form Processing: Organize intake forms and consent documents
- Discovery Document Processing: Split large discovery document batches
- Case File Organization: Separate documents by case number
- Court Filing Separation: Divide multi-case filing batches
- Contract Management: Organize contracts and exhibits
- Application Processing: Separate student or job applications
- Exam Paper Sorting: Divide exam papers by student ID
- Administrative Forms: Organize various form types from bulk scans
- Enrollment Documents: Split registration and enrollment packets
