Password Protect Excel Files in Zapier

Secure Excel is a Zapier action by PDF4me that applies three independent levels of password protection to an Excel file: file encryption so only authorized users can open it, workbook-structure locking to prevent sheet changes, and worksheet-level protection to restrict editing while still allowing viewing. Trigger it before distributing financial reports, templates, or confidential data.

Related Blog Posts
No blog post yet for this feature — coming soon.
In the meantime, browse the PDF4me blog for tutorials and workflows across every platform.
Visit the blog →

How Do I Authenticate My API Request?​

To access the PDF4me Web API through Zapier, every request must include proper authentication credentials. Authentication ensures secure communication and validates your identity as an authorized user, enabling seamless integration between your Zapier workflows and PDF4me's powerful Excel security services.

Get your API Key

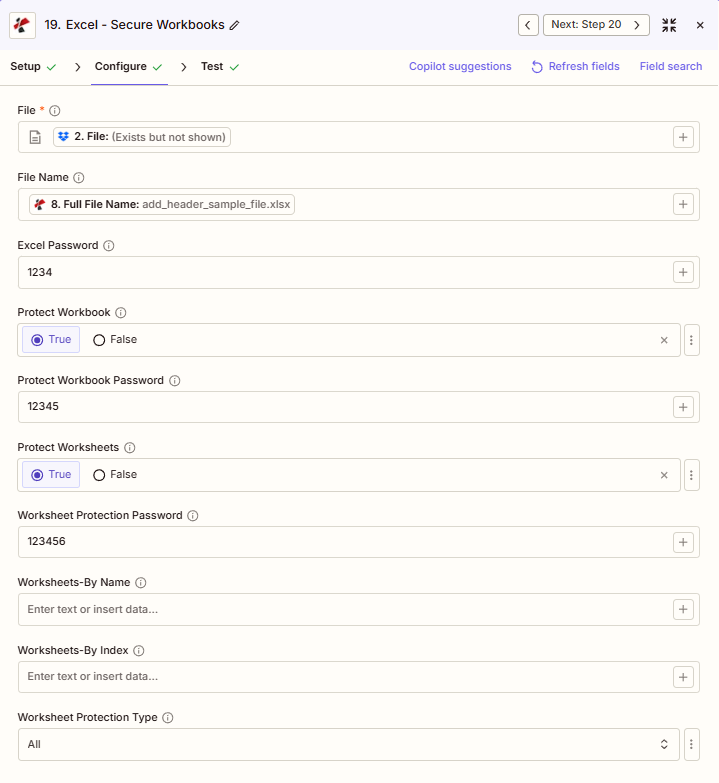

PDF4me Excel Secure Workbooks Zapier configuration - File, File Name, Excel Password 1234, Protect Workbook True, Protect Workbook Password 12345, Protect Worksheets True, Worksheet Protection Password 123456, Worksheet Protection Type All
Configure the Secure Excel action: map File and File Name, set Excel Password, Protect Workbook, Protect Worksheets and their passwords, and Worksheet Protection Type.

Important Facts You Should Not Miss​

Only File is truly required
The screenshot confirms File is the only field carrying an asterisk. Every password and protection field is optional, though at least one protection level should be enabled to secure anything.
Excel Password is the fallback for the other levels
If Protect Workbook Password or Worksheet Protection Password is left empty, the action uses Excel Password for that level instead, so one password can cover all three.
Three protection levels do different jobs
Excel Password blocks opening the file, Protect Workbook blocks structural changes like adding sheets, and Protect Worksheets blocks editing cell content on specific sheets.

Configuration at a Glance​

Example configuration from the Zapier interface

The screenshot shows File and File Name mapped from a previous step, Excel Password "1234", Protect Workbook True with Protect Workbook Password "12345", Protect Worksheets True with Worksheet Protection Password "123456", Worksheets-By Name and Worksheets-By Index empty, and Worksheet Protection Type "All".

Excel Password

1234

Protect Workbook

True

Protect Worksheets

True

Protection Type

All

Map File and File Name from previous steps

Use the + button next to File and File Name to map from earlier Zap steps. The Excel file must provide full content, not "Exists but not shown" references.

File: (Exists but not shown)

If you see "File: (Exists but not shown)" in the File field and get errors, select the option that provides the full file content instead. See Zapier & Power Automate Tips for details.

Parameters​

Complete list of parameters for the Secure Excel action. Parameter names match the Zapier configuration UI.

Required in the Zapier UI: File only. All passwords and protection toggles are optional, but enable at least one protection level for the action to secure anything.

ParameterRequiredWhat it doesExample
FileRequiredExcel file content, mapped from a previous step using full file content.[2. File from Step 2]
File NameConditionalFilename with .xlsx or .xls extension, used for output naming.add_header_sample_file.xlsx
Excel PasswordConditionalFile encryption password required to open the file. Also used as the fallback for Protect Workbook Password and Worksheet Protection Password if those are left empty.1234
Protect WorkbookConditionalBoolean toggle to lock the workbook structure, preventing sheets from being added, deleted, or renamed.True
Protect Workbook PasswordConditionalPassword required to unlock workbook structure protection. Falls back to Excel Password if left empty.12345
Protect WorksheetsConditionalBoolean toggle to restrict editing on the targeted worksheets.True
Worksheet Protection PasswordConditionalPassword required to unlock worksheet protection. Falls back to Excel Password if left empty.123456
Worksheets-By NameConditionalComma-separated worksheet names to protect. Leave empty to protect every worksheet.Sheet1,Summary
Worksheets-By IndexConditionalComma-separated worksheet indexes to protect. Leave empty to protect every worksheet.0,2
Worksheet Protection TypeConditionalWhat is restricted on protected worksheets: All, Contents, Objects, or Scenarios.All

What Fields Does the Output Include?​

The action returns the protected Excel file plus tracking metadata. This output shape is shared across PDF4me Excel actions in Zapier that return a file.

FieldTypeWhat it contains
Job IdStringUnique identifier for the Zapier job execution.
File UrlURLAPI endpoint to download the protected Excel file. Map this to the next step, Drive, Dropbox, or another PDF4me Excel action.
Alternate File UrlURLAlternate download URL with the filename in the path.
File NameStringBase filename without extension.
Full File NameStringComplete filename including extension.
File ExtensionStringFile extension of the output.
Document IdStringUnique identifier for the processed document.
File SizeNumberSize of the output file in bytes.

Typical Setups​

Workflow ExamplesCommon Zapier workflow patterns using Secure Excel.
Encrypt confidential financial reports before distribution
  1. A trigger fires when a monthly financial report is finalized in Drive.
  2. Secure Excel runs with Excel Password set for file-open encryption, plus Protect Workbook and Protect Worksheets enabled for full structural and content protection.
  3. The protected report is uploaded to a restricted executive folder, and the password is shared through a separate secure channel.
Lock formula sheets in a distributed template
  1. An approved template is retrieved from a shared template library, triggering the Zap.
  2. Secure Excel runs with Protect Worksheets set to True and Worksheets-By Name targeting just the formula sheets, leaving data-entry sheets editable.
  3. The protected template is uploaded back to the shared library for team use.
Distribute a read-only performance report
  1. A weekly performance report finishes generating, triggering the Zap.
  2. Secure Excel runs with Protect Worksheets set to True and Worksheet Protection Password left empty so it falls back to a single shared Excel Password.
  3. The report is emailed to the wider team along with the one shared password.

Practical Tips​

Map full file content, not a reference
If File shows "Exists but not shown", pick the mapping option that provides full file content, or the action can fail to process the document.
Leave a password empty to fall back to Excel Password
If Protect Workbook Password or Worksheet Protection Password is blank, the action uses Excel Password for that level, so you can secure everything with one password.
Target specific sheets, not the whole workbook
Use Worksheets-By Name or Worksheets-By Index to protect only formula or reference sheets while leaving data-entry sheets editable.
Worksheet Protection Type mirrors Excel’s own options
All, Contents, Objects, and Scenarios correspond to the same protection categories Excel itself offers when protecting a sheet manually.
This is protection, not unbreakable encryption
Standard Excel password protection deters casual access but is not equivalent to strong cryptographic security, avoid relying on it alone for highly sensitive data.

Cheat Sheet​

FieldValue
ActionSecure Excel
File[mapped from previous step, full content]
File Nameadd_header_sample_file.xlsx
Excel Password1234
Protect Workbook / PasswordTrue / 12345
Protect Worksheets / PasswordTrue / 123456
Worksheet Protection TypeAll

Frequently Asked Questions​

How do I password protect an Excel file automatically in Zapier?+
Add the PDF4me Secure Excel action to a Zap, map File with full file content, set Excel Password for file-open encryption and/or Protect Workbook and Protect Worksheets with their own passwords, and run the Zap. See Microsoft's guide to protecting an Excel file for how the same protection levels work manually.
What is the difference between Excel Password, Protect Workbook, and Protect Worksheets?+
Excel Password encrypts the file so a password is required just to open it. Protect Workbook locks the workbook structure so sheets cannot be added, deleted, or renamed. Protect Worksheets restricts editing within specific worksheets while still allowing the file to be opened and viewed.
Do I need a separate password for each protection level?+
No. If Protect Workbook Password or Worksheet Protection Password is left empty, the action falls back to Excel Password for that level, so one password can secure all three levels, or you can set a distinct password per level.
Can I protect only specific worksheets instead of the whole file?+
Yes. Set Worksheets-By Name or Worksheets-By Index to a comma-separated list to target specific sheets. Leave both empty to apply worksheet protection to every sheet in the file.
What does Worksheet Protection Type control?+
Worksheet Protection Type sets what is locked within a protected worksheet: All locks cell editing entirely, while Contents, Objects, or Scenarios restrict only that specific category, matching Excel's own worksheet protection options. See this security discussion on how safe password-protected Excel files really are for the limits of this protection.

Same Task on Other Platforms​

Industry Use Cases & Applications​

  • Salary File Encryption: Apply file encryption to payroll and compensation files before HR distribution
  • Financial Template Protection: Protect structure and formula sheets in financial model templates
  • Audit Working Paper Security: Encrypt audit files with passwords before archive storage
  • Budget Template Protection: Lock budget formula sheets while allowing department data entry
  • Board Package Encryption: Apply file encryption to board meeting packages for confidentiality
