Add Margin to PDF — Online, Automated, in Zapier

What this action does

PDF4me Add Margin to PDF is the automated way to add margins to a PDF online — with millimeter-precise control over Top, Bottom, Left, and Right edges, directly inside your Zapier workflow. Adjust PDF page margin, add white space, set PDF padding, or prepare PDFs with print margin and binding gutter — without manually uploading files to iLovePDF, SmallPDF, or Adobe Acrobat one by one. Original content stays intact; only the surrounding white space expands. Free tier available — automate margin adjustment across Dropbox, Google Drive, Gmail, SharePoint, and 6,000+ Zapier-connected apps.

Authenticating Your API Request​

To access the PDF4me Web API through Zapier, every action must be authenticated. Click Connect a new account the first time and paste your PDF4me API key — subsequent Zaps reuse the connection automatically.

Get your API Key

Important Facts You Should Not Miss​

All measurements in millimeters (mm) — including the four margin fields
Top, Bottom, Left, Right all accept mm values. Common conversions: 1 inch = 25.4mm, 0.5 inch = 12.7mm. Decimal values supported. For APA/MLA 1-inch margins enter 25.4; for metric A4 standards enter values directly.
Page size grows — content stays the same
Adding 25mm on all sides of US Letter (216×279mm) produces 266×329mm. Original content placement is preserved — only the white space around it expands. This is the OPPOSITE of Crop PDF (which removes margins).
Independent control of each side — perfect for binding
Set different values per edge. Print binding typically uses asymmetric margins: 40mm left (binding edge) + 25mm top/bottom/right. Court filings often require larger top margins for filing stamps.

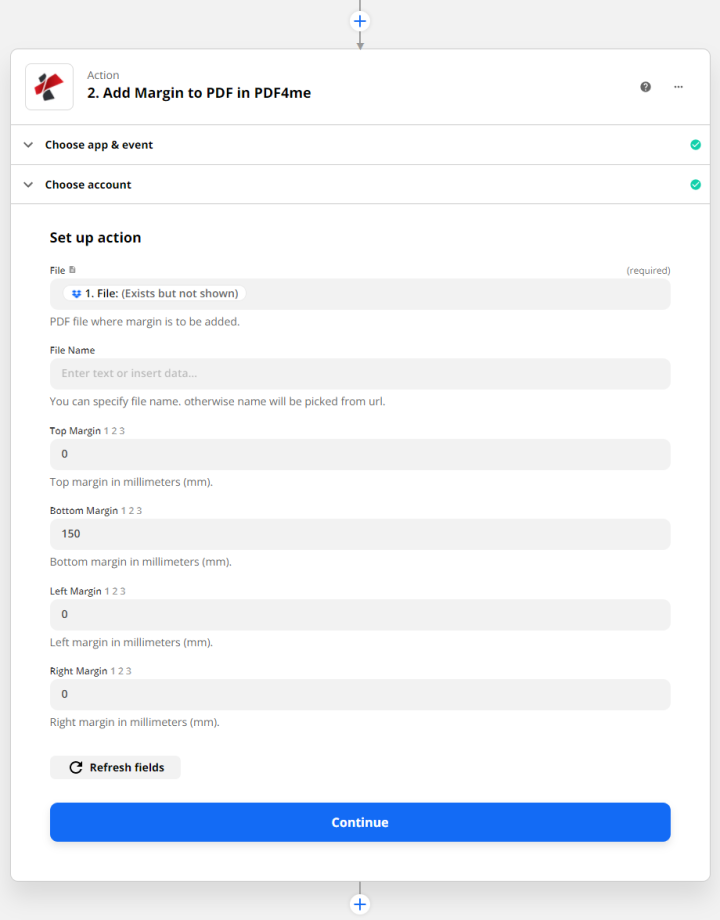

Zapier PDF4me Add Margin to PDF action showing File mapped from previous step, optional File Name, and Top, Bottom, Left, Right margin inputs in millimeters for customizing PDF page margins

Map the source PDF, set margin values in millimeters for each side, and run. The output PDF has expanded page dimensions with the original content preserved.

Parameters​

Required: Only the File field is required. All four margin fields are optional — if omitted, that side gets a zero-millimeter margin (no change). For binding or printing, you typically need all four margins set. For court filings, only Top and Left often matter.

ParameterRequiredWhat it doesExample
FileYesSource PDF where margins will be added. Map from a previous Zap step — Dropbox New File, Google Drive New File, Gmail attachment, form submission, HTTP webhook, or any binary PDF output.1. File
File NameNoOptional output filename for the resulting PDF with new margins. If omitted, derived automatically from the source filename. Include the .pdf extension.document_with_margins.pdf
Top MarginNoMillimeters of white space to add above the existing content. Standard 25mm = 1 inch. Court filings often require 38mm (1.5 inches) for filing stamps.25
Bottom MarginNoMillimeters of white space to add below the existing content. Standard 25mm = 1 inch. For booklet printing, match top and bottom for visual balance.25
Left MarginNoMillimeters of white space to add on the left side. For print binding, use 40mm to allow space for the binding spine. Standard documents use 25mm.25
Right MarginNoMillimeters of white space to add on the right side. Typically equal to or less than left margin. For mirrored book layouts, use a smaller value to balance the binding edge.25

Standard Margin Sizes Reference​

Common margin presets by document type — copy these into the Zap fields based on your use case.

25 / 25 / 25 / 25Standard business (1 inch all sides)
Default for most business letters, reports, proposals, and corporate documents. Equivalent to 1 inch on all four sides.
25 / 25 / 40 / 25Print binding (extra left for spine)
For documents bound on the left edge — manuals, books, training materials. 40mm left gives 15mm extra for the binding spine.
25.4 / 25.4 / 25.4 / 25.4Academic APA / MLA / Chicago (exact 1 inch)
Exact 1-inch conversion for academic publishing. Required by APA Style 7th edition, MLA 9th edition, and Chicago Manual of Style.
38 / 25 / 25 / 25Court filing (extra top for stamps)
For legal court filings requiring 1.5-inch top margin for clerk stamps and case numbers. Adjust per jurisdiction-specific rules.
15 / 15 / 15 / 15Newsletter / brochure (maximum content)
Smaller margins for high-density content like newsletters, marketing brochures, and information sheets where content area matters more than white space.
20 / 15 / 20 / 15Book / magazine (mirrored layout)
Asymmetric for facing-page book layouts — larger inside (binding) margin, smaller outside. Combine with page rotation for full mirrored typesetting.

Output Fields​

FieldTypeWhat it contains
File ContentBinaryPDF file with new margins applied — ready to upload, email, or pass to further processing steps in the Zap.
File URLStringDirect URL to access the resulting PDF. Useful for sharing or downstream HTTP processing without re-uploading.
File NameStringOutput filename without extension (e.g. document_with_margins).
Full File NameStringComplete output filename including the .pdf extension (e.g. document_with_margins.pdf).
File ExtensionStringFile extension of the output (always .pdf for this action).

Quick Setup​

  1. In Zapier, click + to add a new action and select PDF4me.
  2. Choose Add Margin to PDF as the action event.
  3. Connect your PDF4me account or paste your API key when prompted.
  4. Map File to the binary output of a previous step — Dropbox New File, Google Drive New File, Gmail attachment, or form trigger.
  5. Set the four margin values in millimeters — use the Standard Margin Sizes Reference table above to pick a preset for your use case (binding, academic, court filing, etc.).
  6. Optionally set File Name by mapping a custom filename + .pdf extension from a prior step.
  7. Test the step with a sample PDF and inspect the output to verify margins look correct.
  8. Turn the Zap on. Every new PDF from your trigger gets the same margins added automatically.

Workflow Examples​

Workflow ExamplesCommon Zapier workflow patterns using Add Margin to PDF.
Book manuscript upload → add binding margin → print service
  1. A Dropbox watch folder fires when a book manuscript PDF is uploaded to a "Print Ready" folder.
  2. PDF4me Add Margin to PDF runs with Top 25, Bottom 25, Left 40, Right 25 — adding the 15mm extra binding spine on the left.
  3. The print-ready PDF is uploaded to the print-on-demand service (Lulu, KDP, BookBaby) via HTTP webhook for production.
  4. A confirmation email goes to the author with the print job ID and estimated completion date.
  5. An Airtable row logs the manuscript title, author, date, and print service order number for tracking.
Academic paper submission → APA margins → journal portal
  1. A Google Forms trigger fires when a researcher submits a paper for journal review.
  2. Add Margin to PDF runs with 25.4mm on all sides (exact 1-inch APA Style requirement).
  3. The properly margined paper is automatically submitted to the journal portal via HTTP webhook to their submission API.
  4. A Gmail step confirms submission to the researcher with their tracking ID and the journal's expected review timeline.
  5. Google Sheets logs the paper title, journal, author, and submission date for the research office.
Legal court filing → add filing stamp margin → e-filing system
  1. A paralegal saves a draft motion or brief PDF to a "Court Filings" SharePoint folder.
  2. Add Margin to PDF runs with Top 38mm (1.5 inches for filing stamps and case number block), Left 25, Right 25, Bottom 25.
  3. The court-compliant PDF is automatically uploaded to the e-filing system (PACER, state court portals) via HTTP webhook.
  4. A confirmation email to the attorney includes the e-filing receipt number and the court's docket entry.
  5. The original draft and the court-ready version are both archived in the case file with appropriate metadata.

Frequently Asked Questions​

How do I add margin to a PDF online?+
You can add margin to a PDF online using the PDF4me Add Margin to PDF action in Zapier. Map your source PDF from a Dropbox, Google Drive, or Gmail step, then enter Top, Bottom, Left, and Right margin values in millimeters. The free PDF4me Zapier tier covers small workflows (typically up to 100 conversions/month on the free Zapier plan); the same action scales to thousands of PDFs per month on paid plans. Unlike iLovePDF, SmallPDF, or Adobe Acrobat — which require you to manually upload PDFs one at a time and click through their UI — the Zapier action runs automatically every time a new PDF arrives in your trigger (Dropbox folder, Gmail attachment, form submission, or webhook).
How do I add white space to a PDF without losing quality?+
Adding white space to a PDF — also called adding PDF padding or adjusting PDF page margin — is done by expanding overall page dimensions rather than scaling content. The PDF4me Add Margin to PDF action keeps original content at its native resolution and quality, then increases page size to accommodate the requested white space on each side. No image compression, no font rasterization, no quality loss. Output is a clean PDF with the same content sharpness as the input, plus the millimeter-precise margins you requested added around it. This is the correct way to add space around PDF content without degrading quality — much safer than printing-to-PDF tricks or manual page resizing.
Does adding margins change my PDF page size or content?+
Yes — adding margins increases overall page dimensions to fit the new white space, but the original content stays untouched. For example, a US Letter (216 × 279mm) PDF with 25mm margins added on all sides becomes 266 × 329mm. Content remains at its exact original size and position relative to the original page boundary; only the surrounding white space expands outward. This is the opposite of cropping (which removes content area). Use Add Margin to PDF when you need MORE white space for print binding, court filing stamps, or readability — use Crop PDF when you need to REMOVE excess white space. The output PDF will be physically larger when printed, so confirm your printer or print service supports the new dimensions before bulk processing.
What's the difference between PDF margin and PDF padding?+
PDF margin and PDF padding refer to the same thing: white space added around the content on each page. The terms are interchangeable in PDF editing, though 'margin' is the more common print and publishing term while 'padding' is more common in web/CSS-style contexts. The PDF4me Add Margin to PDF action handles both — set Top, Bottom, Left, Right values in millimeters to control how much padding/margin surrounds your content on each side. A typical print-ready PDF has 25mm (1 inch) padding on all sides; print binding adds an extra 15mm to the binding edge for the gutter (40mm total binding-side margin). Academic papers in APA Style 7th edition use exactly 25.4mm (1 inch) on all sides.
How does PDF4me on Zapier compare to iLovePDF, SmallPDF, and Adobe Acrobat for adding PDF margins?+
iLovePDF and SmallPDF both offer margin-adjustment features as free online tools — but they require manual file upload one PDF at a time, with daily free-tier limits (typically 2-3 conversions per day on free, or paid plans starting around $9/month per user). Adobe Acrobat Pro provides margin and page-box control via Tools → Crop → Set Page Boxes, requiring a $20+/month subscription per user. The PDF4me Zapier action automates the same margin adjustment at scale — triggered by Dropbox uploads, Gmail attachments, form submissions, webhook events, SharePoint files, or scheduled flows — and chains directly into downstream Zap steps (Google Drive upload, SharePoint, email, print service submission, archive). Use the manual tools for one-off PDFs; use PDF4me Zapier when you need to apply consistent margins across dozens to thousands of PDFs per month for academic publishing, print binding preparation, court filings, or corporate document standardization — without manual intervention.
