Replace Text in Excel in Power Automate

PDF4me Replace Text in Excel action enables comprehensive search and replace operations in Excel documents in Power Automate with optional formatting application. This powerful text manipulation feature supports literal text replacement and regular expressions (regex), with case-sensitive matching options, entire cell or partial matching, multiple replacement phrases in single operation, and optional formatting changes (font, color, size, bold, italic, underline, strikethrough, subscript, superscript), perfect for data standardization, content updates, error correction, and automated text transformation across all worksheets in Microsoft 365 workflows.

Authenticating Your API Request

To access the PDF4me Web API through Power Automate, every request must include proper authentication credentials. Authentication ensures secure communication and validates your identity as an authorized user, enabling seamless integration between your Power Automate flows and PDF4me's powerful Excel text replacement services.

Get your API Key

Key Features

• Literal & Regex Support: Replace text using simple text matching or powerful regular expressions
• Case-Sensitive Option: Control case sensitivity for precise or flexible matching
• Entire Cell Matching: Match partial text or require entire cell match
• Multiple Replacements: Process multiple search-replace operations in single action
• Optional Formatting: Apply font, color, size, and style changes to replaced text
• All Worksheets Processing: Automatically processes all worksheets in workbook

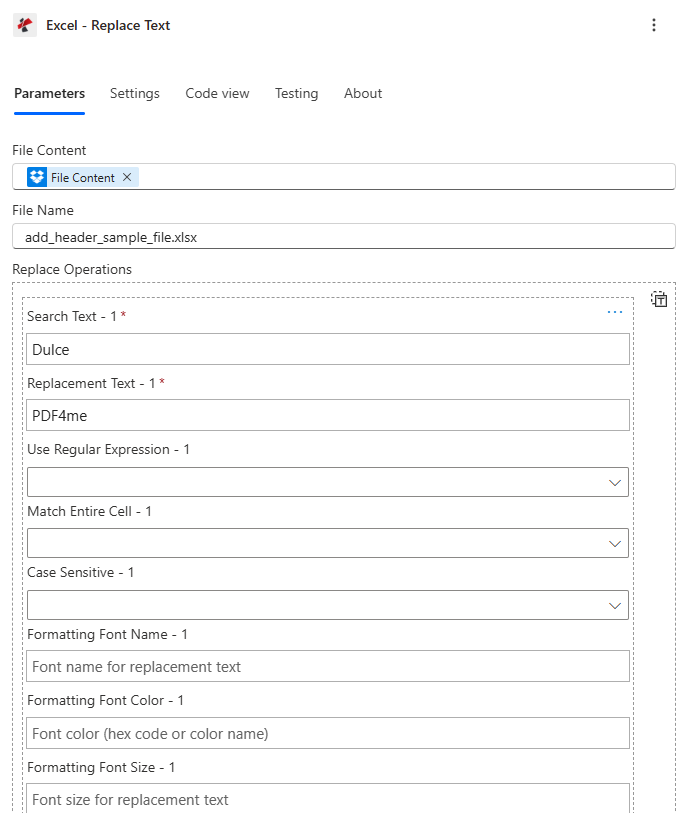

Parameters

Complete list of parameters for the Replace Text in Excel action. Configure these parameters to control text replacement.

Important: Parameters marked with an asterisk (***) are required. This action processes all worksheets in the Excel file.

Parameter	Type	Description	Example
File Content***	Base64	Source Excel File Content • Map Excel file from previous action output • Supports Excel files from SharePoint, OneDrive, email attachments • Can be dynamically retrieved from flow variables • Must be valid Excel document (.xlsx, .xls formats)	[File Content from Get File]
File Name***	String	Excel Document Name • Specify Excel file name with extension (.xlsx, .xls) • Used for processing and output file naming • Must include proper file extension • Supports dynamic naming from flow variables	data.xlsx
Phrases***	Array	List of Replacement Operations • Array of ReplacementPhrase objects with properties: SearchText* (string), ReplacementText* (string, can be empty to delete), IsExpression (bool, default: false - true = regex, false = literal text), CaseSensitive (bool, default: false), MatchEntireCell (bool, default: false - true = entire cell match, false = partial match), Formatting (TextFormatting object - optional: FontName, FontColor (hex or name), FontSize, Bold/Italic (Apply/Remove/Inherit), UnderlineType, StrikethroughType, ScriptType (Subscript/Superscript), FontSchemeType, ThemeColour) • Must contain at least one phrase • Processed sequentially in array order • Matching: Literal text uses string comparison; Regex supports patterns and groups ($1, $2) • Invalid phrases logged as warnings but don't stop processing	[{"SearchText":"old","ReplacementText":"new"}]

Output

The PDF4me Replace Text in Excel action returns comprehensive output data for seamless Power Automate flow integration:

Table

Table View

Response data in a structured table format:

Parameter	Type	Description
document	Base64	Excel document with text replaced
Success	Boolean	true if operation successful, false if failed
Error Message	String	Error description (null if successful)
Errors	Array	List of detailed error information (empty array if successful)

JSON

JSON Response Format

The raw JSON response from the action:

{
  "document": "[Base64 Excel Content with Text Replaced]",
  "Success": true,
  "ErrorMessage": null,
  "Errors": []
}

Error Response Example:

{
  "document": null,
  "Success": false,
  "ErrorMessage": "No replacement phrases provided",
  "Errors": [
    {
      "Code": "PHRASE_ERROR",
      "Message": "Phrases list cannot be null or empty"
    }
  ]
}

Flow Integration

Power Automate Flow Usage

Use Excel files with replaced text in subsequent actions:

• Data Standardization: Replace inconsistent values with standard formats
• Error Correction: Fix misspellings and data entry errors
• Content Updates: Update product names, prices, or status values
• Format Conversion: Convert dates, phone numbers, or identifiers to standard formats
• Privacy Masking: Replace sensitive data with masked values
• Email Distribution: Send updated Excel files to stakeholders

Common Error Messages

Understanding and troubleshooting errors helps ensure smooth Excel text replacement workflows:

Error Message	Cause	Solution
"Request is empty"	Request object is null	Provide valid request object
"Document is empty"	Document object is null	Provide valid Excel document
"No replacement phrases provided"	Phrases list is null or empty	Provide at least one replacement phrase
"Skipping phrase with empty search text"	Phrase has null or empty SearchText (logged as warning)	Provide valid SearchText for all phrases
"Invalid regex pattern '{pattern}': {error}"	Invalid regex when IsExpression = true (logged as warning)	Fix regex syntax or escape special characters

Note: Invalid phrases are logged as warnings but don't stop processing. Other valid phrases are still processed.

Workflow Examples

The PDF4me Replace Text in Excel action in Power Automate provides comprehensive workflow templates designed for real-world business scenarios:

Data Standardization

Automated Data Format Standardization Workflow

Transform your data quality with automated text replacement and formatting:

Complete Workflow Steps:

1. Trigger: Data import Excel uploaded to "Processing" SharePoint folder
2. Get Import File: Retrieve Excel file with inconsistent data
3. Standardize Phone Numbers: Replace "(XXX) XXX-XXXX" with "XXX-XXX-XXXX" using regex
4. Standardize Dates: Convert "MM/DD/YYYY" to "YYYY-MM-DD" format using regex groups
5. Clean Titles: Replace "Mr.", "Mrs.", "Dr." with "Mr", "Mrs", "Dr" (no periods)
6. Highlight Errors: Replace "ERROR" with red bold "ERROR" using formatting
7. Set Phrases: Create array with all 4+ replacement operations
8. Process File: Apply all replacements in single operation
9. Upload Standardized: Save to "Standardized Data" folder
10. Send Summary: Email data owner with standardization report

Business Benefits:

• Standardizes 200+ data rows weekly automatically
• Ensures consistent data formats across all imports
• Highlights errors with red formatting for easy identification
• Reduces manual data cleanup time by 85%

Create Flow

Privacy Masking

Automated Sensitive Data Masking Workflow

Streamline your data privacy with automated PII masking:

Complete Workflow Steps:

1. Trigger: Excel report marked for external sharing
2. Get Report: Retrieve Excel with sensitive information
3. Mask SSNs: Replace SSN pattern "\d3-\d2-\d4" with "XXX-XX-XXXX"
4. Mask Emails: Replace email regex with "[email protected]"
5. Mask Phone Numbers: Replace phone pattern with "XXX-XXX-XXXX"
6. Mask Credit Cards: Replace "\d4-\d4-\d4-\d4" with "XXXX-XXXX-XXXX-XXXX"
7. Set All as Regex: IsExpression = true for all phrases
8. Process Masking: Apply all privacy masks
9. Verify Masked: Confirm no PII visible
10. Email External: Send masked report to external stakeholders

Business Benefits:

• Masks PII in 50+ reports monthly automatically
• Ensures GDPR and privacy compliance
• Prevents accidental disclosure of sensitive information
• Enables safe external sharing of internal data

Create Flow

Content Updates

Automated Product Name Update Workflow

Optimize your content management with automated product name updates:

Complete Workflow Steps:

1. Trigger: Product rebranding approved in product management system
2. Get All Reports: Retrieve Excel files from reports library
3. Loop Each File: Apply to each for all Excel reports
4. Replace Old Product: SearchText = "OldProduct", ReplacementText = "NewProduct"
5. Case Insensitive: CaseSensitive = false for flexible matching
6. Match Partial: MatchEntireCell = false to catch all mentions
7. Apply Bold: Add formatting to highlight updated product names
8. Process Replacement: Update all occurrences across all worksheets
9. Upload Updated: Save to "Updated Reports" folder
10. Send Notification: Email report owners about product name changes

Business Benefits:

• Updates product names in 100+ Excel files during rebranding
• Ensures consistent product naming across all documents
• Highlights updated names with formatting for visibility
• Automates mass content updates saving 20+ hours

Create Flow

Error Correction

Automated Spelling and Error Correction Workflow

Enhance your data quality with automated error correction:

Complete Workflow Steps:

1. Trigger: Weekly data quality check scheduled on Sunday at 2 AM
2. Get Master Data: Retrieve customer database Excel from SharePoint
3. Fix Common Typos: Create phrases for frequent misspellings
4. Replace "Recieve": ReplacementText = "Receive"
5. Replace "Occured": ReplacementText = "Occurred"
6. Replace "Seperate": ReplacementText = "Separate"
7. Fix Status Values: Replace "Complted" with "Completed"
8. Set Case Insensitive: CaseSensitive = false for all
9. Apply Formatting: Highlight corrected values in green
10. Upload Corrected: Save to master data library
11. Send Report: Email data quality report with correction count

Business Benefits:

• Corrects 30+ spelling errors weekly automatically
• Improves data quality and professionalism
• Highlights corrections for human review if needed
• Reduces manual proofreading time by 90%

Create Flow

Industry Use Cases & Applications

Finance & Accounting

Finance & Accounting Use Cases

• Currency Standardization: Replace currency symbols and formats
• Account Code Updates: Update chart of accounts codes across reports
• Status Value Correction: Fix common misspellings in transaction status
• Date Format Conversion: Standardize date formats in financial data

Sales & Marketing

Sales & Marketing Use Cases

• Product Name Updates: Replace old product names with rebranded names
• Territory Changes: Update territory names across sales reports
• Status Standardization: Standardize lead status values (Open, Closed, Pending)
• Email Format Correction: Fix malformed email addresses

Human Resources

Human Resources Use Cases

• Department Name Changes: Update department names after reorganization
• Title Standardization: Standardize job titles across employee records
• Status Updates: Replace employment status values consistently
• Location Updates: Update office location names after moves

Healthcare & Medical

Healthcare & Medical Use Cases

• Code Standardization: Replace ICD codes or procedure codes
• Provider Name Updates: Update provider names after practice changes
• Status Correction: Fix common status value typos
• Privacy Masking: Mask patient identifiers in reports

Operations & Supply Chain

Operations & Supply Chain Use Cases

• SKU Updates: Replace product SKUs after catalog changes
• Vendor Name Changes: Update vendor names after acquisitions
• Location Code Updates: Standardize warehouse location codes
• Status Value Fixes: Correct order status misspellings

Education & Research

Education & Research Use Cases

• Course Code Updates: Replace course codes after catalog changes
• Grade Value Standardization: Standardize grade values (A+, A, A-)
• Student ID Format: Standardize student ID formats
• Status Corrections: Fix enrollment status typos
