Rotate Document using n8n action

PDF4me Rotate Document rotates entire PDF documents with consistent angle application through n8n automation workflows. Process PDFs via n8n triggers, binary data, base64 strings, or public URLs to rotate all pages by 90°, 180°, 270°, or custom angles with preserved document quality, maintained formatting, and uniform orientation across all pages. This solution is ideal for orientation correction, scanned document fixing, document standardization, layout correction, and automated document rotation workflows that require consistent rotation with preserved quality and seamless integration.

Setup

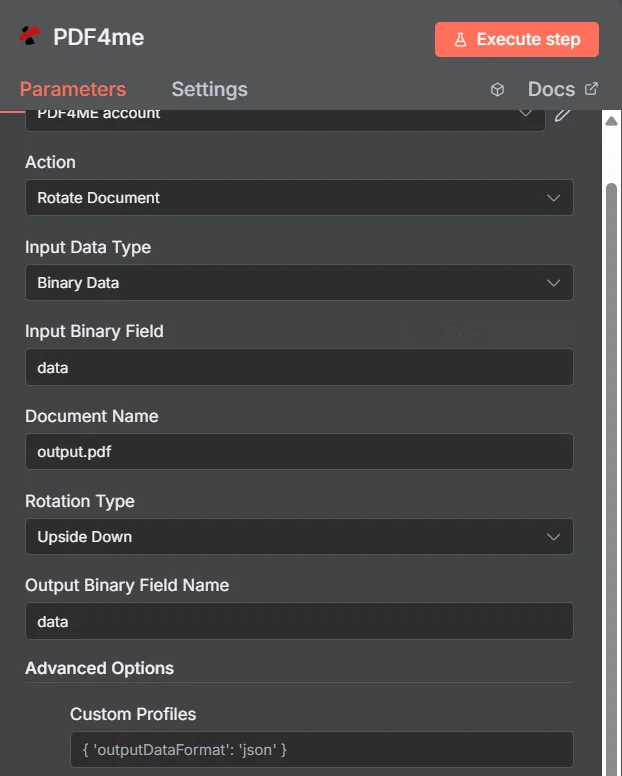

Add the PDF4me "Rotate Document" node to your n8n workflow and configure the required parameters. For initial setup instructions, see our n8n Integration Guide.

Prerequisites:

• PDF4me API credentials
• n8n workflow access

Get Your API Key

Configuration:

1. Add PDF4me node to workflow
2. Select "Rotate Document" action
3. Configure input parameters (see below)

Parameters

Complete list of parameters for the Rotate Document action. Configure these parameters to control document rotation.

Important: Parameters marked with an asterisk (***) are required and must be provided for the action to function correctly.

Parameter	Type	Description	Example
Input Data Type***	String	PDF Input Format Selection • Choose the format of your PDF data input • PDF4me supports multiple input types • Options: Binary Data, Base64 String, or URL	Binary Data
Input Binary Field	Binary	Binary PDF File Input (Required if Binary Data) • Reference PDF file from previous n8n node or file upload • PDF4me processes binary PDF files with automatic format detection • Required when Input Data Type is "Binary Data"	{{ $binary.data }}
Base64 Document Content	String	Base64 Encoded PDF Input (Required if Base64 String) • Provide PDF data as base64 encoded string • PDF4me automatically decodes and processes the PDF content • Required when Input Data Type is "Base64 String"	UEsDBBQABgAI...
File URL	String	Public PDF URL Input (Required if URL) • Provide a public/open permission URL to the PDF file • PDF4me downloads and processes the file from URL • Required when Input Data Type is "URL"	https://abc.com/sample.pdf
Rotation Type***	String	Document Rotation Direction • Choose the rotation direction for entire document • Options: No Rotation, Clockwise (90°), Counter Clockwise (90°), Upside Down (180°) • PDF4me provides precise document orientation control	No Rotation
Document Name***	String	Source PDF Reference • Specify the name of the source PDF file • For reference and tracking purposes in rotation • Helps with processing tracking	document.pdf
Binary Data Output Name***	String	Binary Data Mapping • Define the variable name for accessing generated PDF binary data • Used in subsequent workflow actions • Essential for workflow data flow	data

Advanced Options

The following parameters are available in the Advanced Options section and are optional:

Parameter	Type	Description	Example
Custom Profiles	String	Custom Configuration Profiles • Set additional options using custom profiles • JSON-like format containing predefined parameters • Supports outputDataFormat, preserveMetadata, etc. • Optional for specialized requirements	{ "outputDataFormat": "json", "preserveMetadata": true, "optimizeForPrinting": false, "compressionLevel": "medium" }

Output

Output Parameters

Parameter	Type	Description	Example
fileName	String	PDF4me generated PDF filename - The complete filename of the successfully generated rotated PDF document with proper .pdf extension. PDF4me ensures unique naming and validates file format compliance for seamless integration with downstream processes	output.pdf
fileSize	Number	PDF4me PDF file size in bytes - The exact size of the generated rotated PDF file in bytes, provided by PDF4me for storage planning, bandwidth optimization, and file transfer monitoring. Essential for enterprise document management and workflow automation	2934
success	Boolean	PDF4me document rotation status indicator - Boolean flag indicating the success or failure of the document rotation process. PDF4me returns true for successful operations and false for any errors, enabling robust error handling in automated workflows	true
mimeType	String	PDF4me output MIME type - MIME type of the generated PDF file, always "application/pdf" for PDF documents. Useful for content type validation and proper file handling in web applications	application/pdf
message	String	PDF4me document rotation status message - Human-readable status message providing details about the document rotation process result. Includes success confirmation or error details for troubleshooting	Document rotated successfully
docName	String	PDF4me document name reference - The name of the processed document for reference and tracking purposes. This matches the fileName for consistency in document management workflows	output.pdf
rotationType	String	PDF4me rotation type applied - The rotation type that was successfully applied to the document. Confirms the rotation direction that was configured during the rotation operation	Clockwise

N8N Action Response

The PDF4me Rotate Document API returns a response that can be viewed in multiple formats. Choose the view that best fits your needs:

JSON

JSON Response Format

The raw JSON response from the API:

[
  {
    "fileName": "output.pdf",
    "mimeType": "application/pdf",
    "fileSize": 2934,
    "success": true,
    "message": "Document rotated successfully",
    "docName": "output.pdf",
    "rotationType": "Clockwise"
  }
]

Table

Table View

Response data in a structured table format:

Parameter	Value
fileName	output.pdf
mimeType	application/pdf
fileSize	2934
success	true
message	Document rotated successfully
docName	output.pdf
rotationType	Clockwise

Schema

Schema View

The data structure and types of the response:

1 item
fileName: AB output.pdf
mimeType: AB application/pdf
fileSize: # 2934
success: ☑ true
message: AB Document rotated successfully
docName: AB output.pdf
rotationType: AB Clockwise

Type Indicators:

• AB = String
• # = Number
• ☑ = Boolean

Binary

Binary Data View

The actual rotated PDF file data and metadata:

data
─────────────────────────────
File Name: output.pdf
File Extension: pdf
Mime Type: application/pdf
File Size: 2.9 KB

Binary Data Access:

• n8n Binary Object: $binary.data.data
• Base64 Content: Available for direct use
• File Operations: Ready for download, email, or storage

Use Cases

Document Correction and Orientation

• Correct entire documents that were scanned upside down or sideways
• Fix orientation issues in documents created from mobile devices
• Standardize document orientation across mixed document sources

Professional Document Preparation

• Ensure entire documents are properly oriented for printing and presentation
• Correct orientation issues in reports and presentations
• Prepare documents for digital archiving with consistent orientation

Automated Document Processing

• Integrate document rotation into document processing workflows
• Automatically correct orientation issues during batch processing operations
• Streamline document preparation for different viewing and printing requirements
