Read Barcode From Image using n8n action

PDF4me Read Barcode From Image detects and decodes barcodes from image files through n8n automation workflows. Process images via n8n triggers, binary data, base64 strings, or public URLs to automatically scan for 100+ barcode types (QR Code, Code 128, Data Matrix, EAN-13, etc.), extract barcode content, detect multiple barcodes per image, and output structured data with barcode values and types. This solution is ideal for inventory management, product scanning, asset tracking, shipping workflows, mobile barcode scanning, and automated barcode recognition that require accurate multi-format detection with reliable data extraction and seamless integration.

Setup

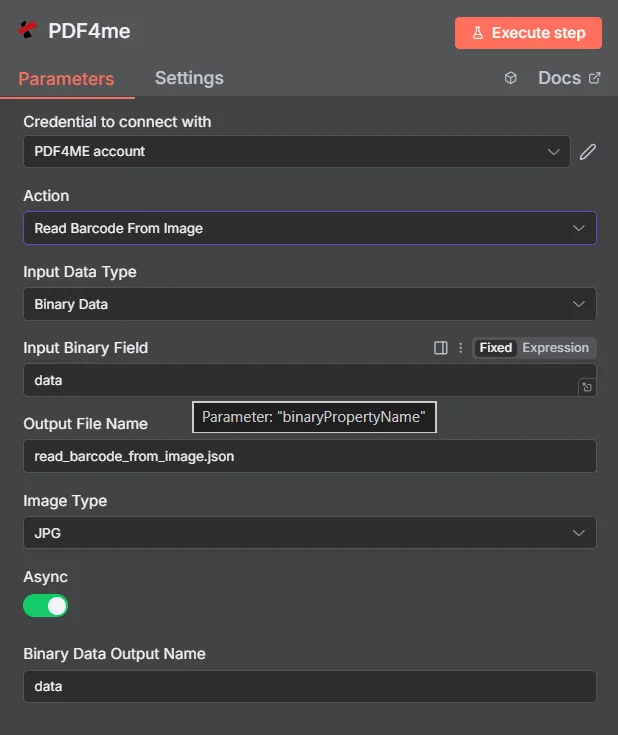

Add the PDF4me "Read Barcode From Image" node to your n8n workflow and configure the required parameters. For initial setup instructions, see our n8n Integration Guide.

Prerequisites:

• PDF4me API credentials
• n8n workflow access

Get Your API Key

Configuration:

1. Add PDF4me node to workflow
2. Select "Read Barcode From Image" action
3. Configure input parameters (see below)

Parameters

Complete list of parameters for the Read Barcode From Image action. Configure these parameters to control barcode reading from images.

Important: Parameters marked with an asterisk (***) are required and must be provided for the action to function correctly.

Parameter	Type	Description	Example
Input Data Type	String	Yes	PDF4me image input format selection Choose the format of your source image data input. PDF4me supports multiple input types with different field requirements
	1) Binary Data	Yes (One Required)	1) Binary Data - Use "Input Binary Field" to reference image file from previous node
	2) Base64 String	Yes (One Required)	2) Base64 String - Use "Base64 Image Content" field for encoded image data
	3) URL	Yes (One Required)	3) URL - Use "Image URL" field to provide a public/open permission URL to the image file to process
Input Binary Field	Binary	Yes (If Binary Data)	PDF4me binary image file input - Reference source image file (.jpg, .png, .gif, .bmp) from previous n8n node or file upload. PDF4me processes binary image files with automatic format detection and validation. Required when Input Data Type is "Binary Data"
Base64 Image Content	String	Yes (If Base64 String)	PDF4me base64 encoded image input - Provide source image data (.jpg, .png, .gif, .bmp) as base64 encoded string for secure transmission. PDF4me automatically decodes and processes the image content. Required when Input Data Type is "Base64 String"
Image URL	String	Yes (If URL)	PDF4me public image URL input - Provide a public/open permission URL to the source image file (.jpg, .png, .gif, .bmp) to be processed for barcode reading. PDF4me downloads and processes the file from the provided URL. Required when Input Data Type is "URL"
Output File Name	String	Yes	PDF4me output filename configuration - Specify the name for the generated barcode data file with proper extension (.json, .txt). This is an input parameter that configures what the output file will be named. PDF4me ensures unique naming and validates file format compliance
Image Type	String	Yes	PDF4me image format specification - Specify the expected image format for accurate barcode recognition. This helps PDF4me optimize the analysis process for the specific image type
	JPG	Yes (One Required)	JPEG Format - Joint Photographic Experts Group format with lossy compression, ideal for photographs and complex images
	PNG	Yes (One Required)	PNG Format - Portable Network Graphics format with lossless compression, ideal for graphics with transparency and sharp edges
	GIF	Yes (One Required)	GIF Format - Graphics Interchange Format with animation support and limited color palette
	BMP	Yes (One Required)	BMP Format - Bitmap image format with uncompressed pixel data
Async	Boolean	No	PDF4me asynchronous processing - Enable asynchronous processing for large images or when processing time is not critical. When enabled, the operation runs in the background and returns immediately
Binary Data Output Name	String	Yes	PDF4me output variable configuration - Define the variable name for accessing the generated barcode data in your n8n workflow. This data can be used as input data in subsequent actions within your workflow

Output

Output Parameters

Parameter	Type	Description	Example
success	Boolean	PDF4me barcode reading status indicator - Boolean flag indicating the success or failure of the barcode reading process. PDF4me returns true for successful operations and false for any errors, enabling robust error handling in automated workflows	true
message	String	PDF4me barcode reading status message - Human-readable status message providing details about the barcode reading process result. Includes success confirmation or error details for troubleshooting	Barcode data extracted successfully
fileName	String	PDF4me generated barcode data filename - The complete filename of the successfully generated barcode data file with proper extension. PDF4me ensures unique naming and validates file format compliance for seamless integration with downstream processes	read_barcode_from_image.json
mimeType	String	PDF4me output MIME type - MIME type of the generated barcode data file (e.g., "application/json", "text/plain"). Useful for content type validation and proper file handling in web applications	application/json
fileSize	Number	PDF4me barcode data file size in bytes - The exact size of the generated barcode data file in bytes, provided by PDF4me for storage planning and file transfer monitoring	78
imageType	String	PDF4me source image format - The format of the source image that was processed for barcode reading (e.g., "PNG", "JPEG", "GIF", "BMP")	PNG

N8N Action Response

The PDF4me Read Barcode From Image API returns a response that can be viewed in multiple formats. Choose the view that best fits your needs:

JSON

JSON Response Format

The raw JSON response from the API:

[
  {
    "success": true,
    "message": "Barcode data extracted successfully",
    "fileName": "read_barcode_from_image.json",
    "mimeType": "application/json",
    "fileSize": 78,
    "imageType": "PNG"
  }
]

Table

Table View

Response data in a structured table format:

Parameter	Value
success	true
message	Barcode data extracted successfully
fileName	read_barcode_from_image.json
mimeType	application/json
fileSize	78
imageType	PNG

Schema

Schema View

The data structure and types of the response:

1 item
success: ☑ true
message: AB Barcode data extracted successfully
fileName: AB read_barcode_from_image.json
mimeType: AB application/json
fileSize: # 78
imageType: AB PNG

Type Indicators:

• AB = String
• # = Number
• ☑ = Boolean

Binary

Binary Data View

The actual barcode data file and information:

data
─────────────────────────────
File Name: read_barcode_from_image.json
File Extension: json
Mime Type: application/json
File Size: 78 bytes
Image Type: PNG

Binary Data Access:

• n8n Binary Object: $binary.data.data
• Base64 Content: Available for direct use
• File Operations: Ready for download, email, or storage

Use Cases

Retail and E-commerce Inventory Management

• Automate product identification and inventory tracking using barcode scanning
• Process product images to extract UPC/EAN codes for automated stock management
• Integrate barcode data with e-commerce platforms for seamless product cataloging

Asset Tracking and Logistics

• Track equipment and assets using barcode identification systems
• Process shipping labels and package barcodes for automated logistics workflows
• Monitor inventory movement and asset location through barcode scanning

Quality Control and Compliance

• Verify product authenticity and compliance using barcode validation
• Process manufacturing labels and quality control tags for automated inspection
• Track batch numbers and serial numbers for regulatory compliance reporting
