PDF4me Word Template

What this guide covers

This guide walks you through generating a single invoice PDF in n8n using the bundled template.docx and data.json sample pack. The Word template uses PDF4me <<[fieldName]>> merge tags (LINQ Reporting Engine syntax). You load the .docx as binary data, paste or load matching JSON/XML/CSV, and receive one finished PDF per run.

Before You Start

Word template with merge tags

The sample template.docx is an invoice layout. Dynamic values use <<[InvNr]>>, <<[companyName1]>>, <<[productName]>>, and similar tags. Field names are case-sensitive and must match your data keys exactly.

Matching data file

Use data.json (recommended), test.xml, or test.csv. All three carry the same invoice values. Pick the Document Data Type in the node to match the file format you supply.

PDF4me credential in n8n

Create a PDF4me credential in n8n and paste your API key. The same key works across all PDF4me nodes in your instance.

→ Get your API key

Sample File Pack

Download all four files below. They are designed to work together: one template plus three equivalent data formats.

template.docx

Invoice Word template with <<[field]>> tags

data.json

15 keys matching template tags (recommended)

test.xml

Same invoice data as XML

test.csv

Same invoice data as CSV (one data row)

What's Inside the Sample Files

Template layout (template.docx)

The sample template is a single-page invoice with fixed labels and dynamic merge fields:

Document section	Static label (fixed in template)	Merge tag (filled from data)
Header	INVOICE	(static)
Invoice meta	Invoice #	<<[InvNr]>>
Invoice meta	Invoice Amount	<<[invAmt]>>
Invoice meta	Invoice Date	<<[invDate]>>
Invoice meta	PO #	<<[invPO]>>
Invoice meta	Billing Period	<<[from]>> to <<[to]>>
Billed To	BILLED TO	<<[companyName1]>>, <<[companyName2]>>, <<[addressline1]>>, <<[addressline2]>>, <<[country]>>
Line item row	Description / Price / VAT % / AMOUNT (USD)	<<[productName]>>, <<[price]>>, <<[vat]>>, <<[amount]>>

Merge tag syntax

PDF4me Word templates use <<[fieldName]>> (double angle brackets with square brackets). This is different from HTML mustache syntax ({{fieldName}}). See the Word Template Syntax guide for loops, conditions, and format strings.

Field mapping across all data files

Every dynamic value in the template maps to a key in data.json, an XML element in test.xml, or a CSV column in test.csv:

Template tag	JSON key (data.json)	XML element (test.xml)	Sample value
<<[companyName1]>>	companyName1	CompanyName1	Muster AG
<<[companyName2]>>	companyName2	CompanyName2	Hans Muster
<<[addressline1]>>	addressline1	AddressLine1	example street
<<[addressline2]>>	addressline2	AddressLine2	8000 Zürich
<<[country]>>	country	Country	Switzerland
<<[productName]>>	productName	ProductName	PDF4me
<<[price]>>	price	Price	1000
<<[vat]>>	vat	VAT	8.00
<<[amount]>>	amount	Amount	1000
<<[InvNr]>>	InvNr	InvoiceNumber	202311InV
<<[invAmt]>>	invAmt	InvoiceAmount	1000
<<[invDate]>>	invDate	InvoiceDate	2023-11-24
<<[invPO]>>	invPO	PurchaseOrder	1234567
<<[from]>>	from	FromDate	2023-10-24
<<[to]>>	to	ToDate	2023-10-24

The Workflow at a Glance

The fastest way to test the sample pack in n8n:

Manual Trigger  →  Read Binary File (template.docx)  →  PDF4me Generate Document (Single)  →  (optional) Write Binary File

Step	n8n node	Purpose
1	Manual Trigger	Start the workflow on demand
2	Read Binary File	Loads template.docx into binary property data
3	PDF4me → Generate Document (Single)	Merges template + data, outputs one PDF
4	Write Binary File (optional)	Saves generated_document_output.pdf to disk

Target configuration: Word template from binary + JSON pasted in Document Data Text + PDF output

---

Step 1: Download and Place the Sample Files

1. Download template.docx and data.json from the Sample File Pack above.
2. Save both files somewhere n8n can read them, for example C:\pdf4me-samples\ on a self-hosted instance, or upload them to Google Drive / Dropbox if you prefer cloud triggers later.
3. Optionally download test.xml or test.csv if you want to test XML or CSV data types instead of JSON.

---

Step 2: Create the n8n Workflow

1. In n8n, create a new workflow.
2. Add a Manual Trigger node (or any trigger you prefer for production).
3. Add a Read Binary File node after the trigger.
4. Add PDF4me → Generate Document (Single) after Read Binary File.
5. Connect the nodes in sequence.

---

Step 3: Load the Word Template (Read Binary File)

Configure the Read Binary File node:

Field	Value
File Path	Full path to your downloaded template.docx
Property Name	data (default; this becomes the binary property the PDF4me node reads)

Execute this node once and confirm the output item shows a binary field named data with filename template.docx.

---

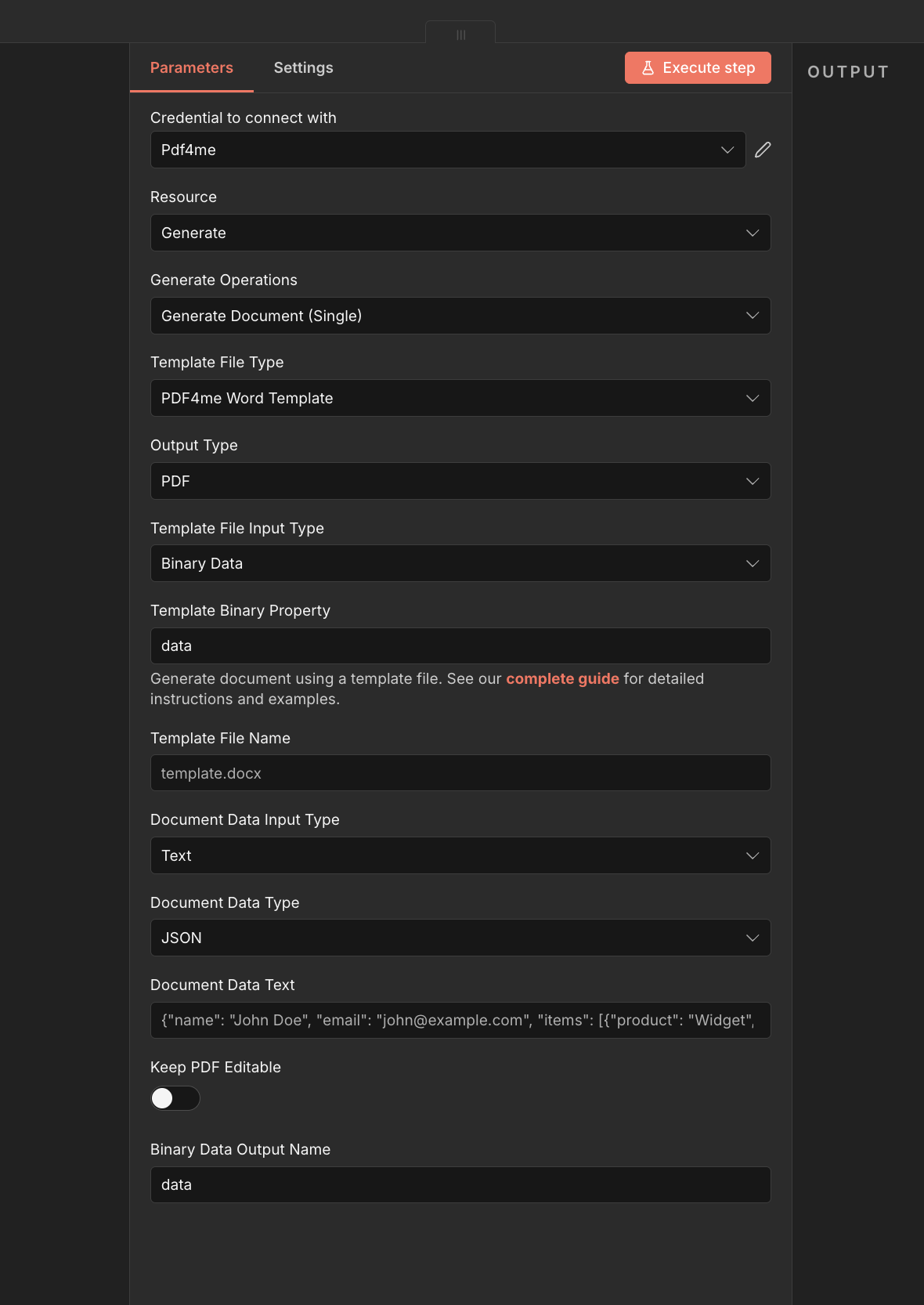

Step 4: Configure PDF4me Generate Document (Single)

Open the PDF4me node and set these fields. Values below match the sample pack exactly.

Core settings

Field	Value	Notes
Credential to connect with	Your PDF4me credential	Get API key
Resource	Generate
Generate Operations	Generate Document (Single)
Template File Type	PDF4me Word Template	Matches .docx with <<[field]>> tags
Output Type	PDF	Use Word if you need an editable merged .docx instead

Template input (from Read Binary File)

Field	Value
Template File Input Type	Binary Data
Template Binary Property	data
Template File Name	template.docx

Document data (paste JSON from data.json)

Field	Value
Document Data Input Type	Text
Document Data Type	JSON
Document Data Text	Paste the full contents of data.json (see block below)

{
  "companyName1": "Muster AG",
  "companyName2": "Hans Muster",
  "addressline1": "example street",
  "addressline2": "8000 Zürich",
  "country": "Switzerland",
  "productName": "PDF4me",
  "price": 1000,
  "vat": 8.0,
  "amount": 1000,
  "InvNr": "202311InV",
  "invAmt": 1000,
  "invDate": "2023-11-24",
  "invPO": "1234567",
  "from": "2023-10-24",
  "to": "2023-10-24"
}

Output options

Field	Value
Keep PDF Editable	Off (default)
Binary Data Output Name	data (default)

---

Step 5: Execute and Verify the PDF

1. Click Execute workflow (or run from the PDF4me node).
2. Open the PDF4me node output. Under Binary, open the file in property data (filename generated_document_output.pdf).
3. Confirm the rendered invoice shows:
   • Invoice # → 202311InV
   • Billed To → Muster AG / Hans Muster / example street / 8000 Zürich / Switzerland
   • Line item → PDF4me, price 1000, VAT 8.00, amount 1000
   • Billing Period → 2023-10-24 to 2023-10-24

If a field renders blank, compare the tag name in template.docx with the JSON key. They must match exactly (including case: InvNr not invNr).

---

Step 6: Save the Output (Optional)

Add a Write Binary File node after PDF4me:

Field	Value
File Name	invoice-output.pdf (or use an expression)
Data Property Name	data
Output Path	Folder where n8n should write the file

---

Alternative Data Formats

The same template.docx works with all three data files in the sample pack. Only the Document Data Type and payload change.

Option A: JSON file as binary (data.json)

1. Add a second Read Binary File node for data.json.
2. Use a Merge node to combine template binary and data binary into one item (or run data load in a separate branch).
3. In PDF4me: Document Data Input Type = Binary Data, Document Data Type = JSON, Document Binary Property = data, Document Data File Name = data.json.

Binary property name collision

When template and data both use property data on the same item, they overwrite each other. Use separate property names (e.g. template and dataFile) or merge items from two Read Binary File nodes.

Option B: XML (test.xml)

Set Document Data Type to XML and paste the contents of test.xml:

<?xml version="1.0" encoding="UTF-8"?>
<Invoice>
    <CompanyName1>Muster AG</CompanyName1>
    <CompanyName2>Hans Muster</CompanyName2>
    <AddressLine1>example street</AddressLine1>
    <AddressLine2>8000 Zürich</AddressLine2>
    <Country>Switzerland</Country>
    <ProductName>PDF4me</ProductName>
    <Price>1000</Price>
    <VAT>8.00</VAT>
    <Amount>1000</Amount>
    <InvoiceNumber>202311InV</InvoiceNumber>
    <InvoiceAmount>1000</InvoiceAmount>
    <InvoiceDate>2023-11-24</InvoiceDate>
    <PurchaseOrder>1234567</PurchaseOrder>
    <FromDate>2023-10-24</FromDate>
    <ToDate>2023-10-24</ToDate>
</Invoice>

Option C: CSV (test.csv)

Set Document Data Type to CSV and paste the CSV body (header row + one data row):

companyName1,companyName2,addressline1,addressline2,country,productName,price,vat,amount,InvNr,invAmt,invDate,invPO,from,to
"Muster AG","Hans Muster","example street","8000 Zürich","Switzerland","PDF4me",1000,8.00,1000,"202311InV",1000,"2023-11-24","1234567","2023-10-24","2023-10-24"

CSV column headers match the JSON keys directly, which map to the <<[fieldName]>> tags in the template.

---

Production Workflow Patterns

Common ways to supply template and data in productionOnce the sample test works, replace the Manual Trigger and Read Binary File nodes with these patterns.

Cloud storage trigger

1. Google Drive / Dropbox / OneDrive trigger fires on new file.
2. Download node fetches template.docx (or use a fixed template path).
3. Build JSON in a Code or Set node from CRM/Sheet fields.
4. PDF4me merges and outputs PDF to email or storage.

Webhook with dynamic JSON

1. Webhook receives order/invoice payload.
2. Template loaded once from URL or binary store.
3. Map webhook body to Document Data Text with an expression.
4. Keys must still match <<[fieldName]>> tags in the template.

Public URLs for template and data

1. Host template.docx and data.json at public HTTPS URLs.
2. Set Template File Input Type = URL, Template File URL = template link.
3. Set Document Data Input Type = URL, Document Data File URL = data link.
4. No prior download nodes required.

Frequently Asked Questions

What placeholder syntax does PDF4me Word Template use?+

Use <<[fieldName]>> inside your .docx file. This is the PDF4me LINQ Reporting Engine syntax, not HTML mustache {{fieldName}}. For loops use <<foreach [item in items]>> ... <</foreach>>, for conditions use <<if [condition]>> ... <</if>>. See the Word Template Syntax guide for the full reference.

Why is a field blank in the generated PDF?+

The data key must match the template tag exactly, including case. InvNr in the template requires "InvNr" in JSON, not "invoiceNumber" or "invnr". Open template.docx and compare each <<[tag]>> with your data file. Empty values also render as blank without an error.

Can I use data.json as a file instead of pasting JSON?+

Yes. Load data.json with Read Binary File, set Document Data Input Type to Binary Data, Document Data Type to JSON, and point Document Binary Property to the binary field. If the template also uses binary property data, rename one property (e.g. template vs dataFile) or merge items from separate nodes.

JSON vs XML vs CSV: which should I use?+

JSON is the simplest for n8n because keys map directly to <<[fieldName]>> tags (as in data.json). XML (test.xml) uses PascalCase element names that PDF4me binds to the same template fields. CSV (test.csv) uses column headers matching the JSON keys, which is useful when data comes from spreadsheets or exports.

PDF or Word output?+

Set Output Type to PDF for sharing, emailing, or archiving. Set Output Type to Word when the recipient needs to edit the merged document after generation. The sample invoice works with both.
