Add Form Fields To PDF using n8n action

PDF4me Add Form Fields To PDF converts static PDF documents into interactive, fillable forms through n8n automation workflows. Process PDFs via n8n triggers, binary data, base64 strings, or public URLs to add form fields (text boxes, checkboxes) with customizable positioning, field names, default values, size control, page-specific targeting, and flexible alignment options. This solution is ideal for form template creation, interactive document generation, data collection forms, survey creation, and automated form design workflows that require professional form field creation with precise positioning and seamless integration.

Setup

Add the PDF4me "Add Form Fields To PDF" node to your n8n workflow and configure the required parameters. For initial setup instructions, see our n8n Integration Guide.

Prerequisites:

• PDF4me API credentials
• n8n workflow access

Get Your API Key

Configuration:

1. Add PDF4me node to workflow
2. Select "Add Form Fields To PDF" action
3. Configure input parameters (see below)

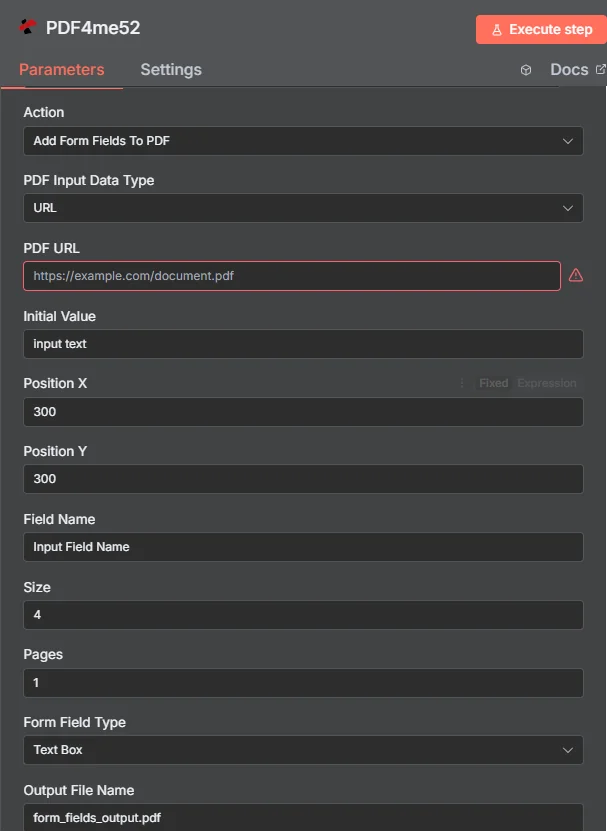

Parameters

Complete list of parameters for the Add Form Fields To PDF action. Configure these parameters to control form field addition.

Important: Parameters marked with an asterisk (***) are required and must be provided for the action to function correctly.

Parameter	Type	Description	Example
Input Data Type***	String	PDF Input Format Selection • Choose the format of your PDF document input • PDF4me supports multiple input types • Options: Binary Data, Base64 String, or URL	Binary Data
Input Binary Field	Binary	Binary PDF File Input (Required if Binary Data) • Reference PDF file from previous n8n node or file upload • Works with any PDF document for form field addition • Required when Input Data Type is "Binary Data"	{{ $binary.data }}
Base64 PDF Content	String	Base64 Encoded PDF Input (Required if Base64 String) • Provide PDF content as base64 encoded string • Supports various PDF formats for form enhancement • Required when Input Data Type is "Base64 String"	JVBERi...
PDF URL	String	Public PDF URL Input (Required if URL) • Provide a public/open permission URL to the PDF file • Downloads and processes the document for form field addition • Required when Input Data Type is "URL"	https://abc.com/doc.pdf
Initial Value***	String	Form Field Default Value • Set the initial or default text value for the form field • Text appears in the field when PDF is opened • Provides guidance or pre-filled information for users	input text
Position X***	Number	Horizontal Field Position • Define the horizontal position (X coordinate) for the form field • Works with alignment settings (Left, Right, Center) • Default value is 0	300
Position Y***	Number	Vertical Field Position • Define the vertical position (Y coordinate) for the form field • Works with alignment settings (Top, Bottom, Middle) • Default value is 0	300
Field Name***	String	Form Field Identifier • Specify a unique name for the form field • Used to identify field in form data extraction and processing • Use descriptive names for better form management	Input Field Name
Size***	Number	Form Field Size • Define the size or font size for the form field • Controls appearance and usability of the form field • Default value is 0	4
Pages***	String	Target Page Specification • Specify page indices as comma-separated values or ranges • Examples: "0,1,2-" or "1,2,3-7" • Default processes all pages if not specified	1
Form Field Type***	String	Field Type Selection • Choose the type of form field to add • Options: TextBox (text input), CheckBox (checkbox field) • Different types provide different functionality	TextBox
Output File Name***	String	Output Filename • Specify the name for the generated PDF file with form fields • Must include .pdf extension • PDF4me ensures unique naming and format validation	form_fields_output.pdf
Output Binary Field Name***	String	Binary Data Mapping • Define the variable name for accessing generated PDF binary data • Used in subsequent workflow actions • Essential for workflow data flow	data
Async	Boolean	Asynchronous Processing • Enable or disable asynchronous processing • When enabled, operation runs in background for better performance • Recommended for enterprise workflows and high-volume processing	true

Output

Output Parameters

Parameter	Type	Description	Example
fileName	String	PDF4me generated filename - The complete filename of the successfully processed PDF document with form fields with proper extension. PDF4me ensures unique naming and validates file format compliance for seamless integration with downstream processes	form_fields_output.pdf
mimeType	String	PDF4me MIME type identifier - The standardized MIME type for the generated PDF file, always set to application/pdf by PDF4me's processing engine. This ensures proper file handling and recognition across all systems and applications	application/pdf
fileSize	Number	PDF4me file size in bytes - The exact size of the generated PDF file in bytes, provided for storage planning, bandwidth optimization, and file transfer monitoring. Essential for enterprise document management and workflow automation	121883
success	Boolean	PDF4me form field addition status indicator - Boolean flag indicating the success or failure of the form field addition process. Returns true for successful operations and false for any errors, enabling robust error handling in automated workflows	true
message	String	PDF4me form field addition status message - Descriptive message indicating the result of the form field addition process. Provides clear status messages for successful operations and detailed error information for troubleshooting purposes	Form fields added to PDF successfully
fieldName	String	PDF4me form field identifier - The name of the form field that was added to the PDF document. This identifier matches the Field Name parameter used during field creation and is essential for form data extraction and field management	Test Box
formFieldType	String	PDF4me field type confirmation - The type of form field that was successfully added to the PDF document. Confirms the field type (TextBox, Checkbox, Radio Button, Combo Box) that was created during the operation	TextBox
initialValue	String	PDF4me field default value - The initial or default text value that was set for the form field. This value appears in the field when the PDF is opened and provides guidance or pre-filled information for users	input
position	Object	PDF4me field position coordinates - The exact position where the form field was placed on the page, containing X and Y coordinates measured in points from the page edges	{"x": 200, "y": 200}
size	Number	PDF4me field size confirmation - The size or font size that was applied to the form field. This confirms the field dimensions and appearance settings that were configured during field creation	3
pages	String	PDF4me target page confirmation - The page number where the form field was successfully added. Confirms the specific page within the document where the field was placed	"1"

N8N Action Response

The PDF4me Add Form Fields To PDF API returns a response that can be viewed in multiple formats. Choose the view that best fits your needs:

JSON

JSON Response Format

The raw JSON response from the API:

[
  {
    "success": true,
    "message": "Form fields added to PDF successfully",
    "fileName": "form_fields_output.pdf",
    "mimeType": "application/pdf",
    "fileSize": 121883,
    "fieldName": "Test Box",
    "formFieldType": "TextBox",
    "initialValue": "input ",
    "position": {
      "x": 200,
      "y": 200
    },
    "size": 3,
    "pages": "1"
  }
]

Table

Table View

Response data in a structured table format:

Parameter	Value
success	true
message	Form fields added to PDF successfully
fileName	form_fields_output.pdf
mimeType	application/pdf
fileSize	121883
fieldName	Test Box
formFieldType	TextBox
initialValue	input
position	{"x": 200, "y": 200}
size	3
pages	"1"

Schema

Schema View

The data structure and types of the response:

success: ✓ true
message: AB Form fields added to PDF successfully
fileName: AB form_fields_output.pdf
mimeType: AB application/pdf
fileSize: # 121883
fieldName: AB Test Box
formFieldType: AB TextBox
initialValue: AB input
position: {} {"x": 200, "y": 200}
size: # 3
pages: AB "1"

Type Indicators:

• AB = String
• # = Number
• ✓ = Boolean
• {} = Object

Binary

Binary Data View

The actual PDF file data and metadata:

data
─────────────────────────────────────────
File Name: form_fields_output.pdf
File Extension: pdf
Mime Type: application/pdf
File Size: 119.0 KB

Use Cases

Digital Form Creation and Conversion**

• Convert paper forms into interactive digital PDF forms with fillable fields
• Add form fields to existing documents for data collection and user input
• Create custom form templates for surveys, applications, and feedback collection

Document Enhancement and Interactivity

• Enhance static documents with interactive elements for better user engagement
• Add data collection capabilities to existing PDF documents and reports
• Transform documents into fillable forms for automated data processing

Workflow Automation and Data Collection

• Automate form creation for standardized data collection processes
• Integrate form field addition into document processing workflows
• Create dynamic forms for various business processes and applications
