Add Barcode to PDF using n8n action

PDF4me Add Barcode to PDF enhances PDF documents by adding customizable barcodes and QR codes through n8n automation workflows. Process PDFs via n8n triggers, binary data, base64 strings, or public URLs to generate 100+ barcode types (QR Code, Code 128, Data Matrix, EAN-13, PDF417, etc.) with precise positioning, customizable sizing, opacity control, and flexible alignment options. This solution is ideal for document tracking, inventory management, asset labeling, automated workflows, and compliance requirements that need reliable barcode generation with professional formatting and seamless integration.

Setup

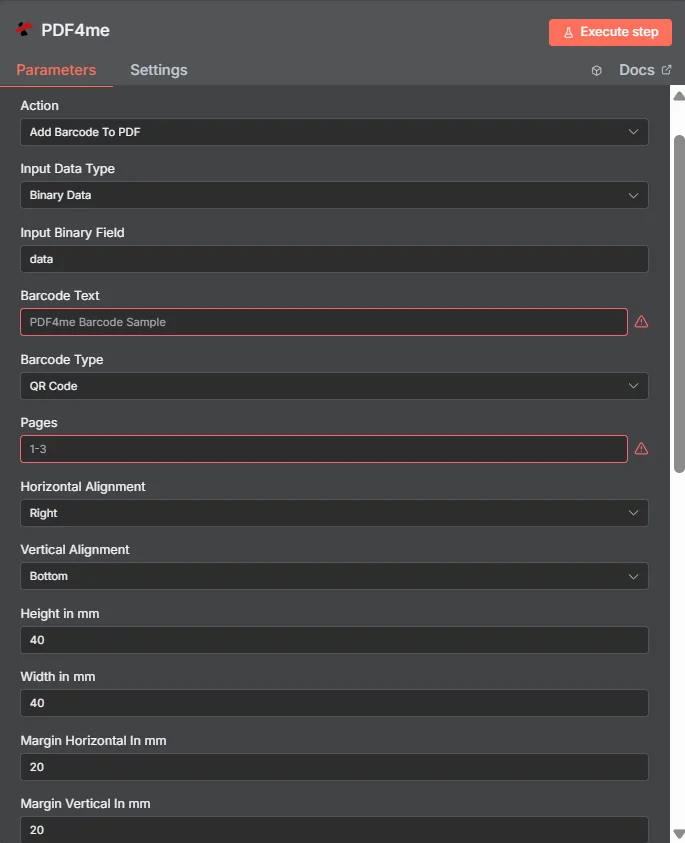

Add the PDF4me "Add Barcode to PDF" node to your n8n workflow and configure the required parameters. For initial setup instructions, see our n8n Integration Guide.

Prerequisites:

• PDF4me API credentials
• n8n workflow access

Get Your API Key

Configuration:

1. Add PDF4me node to workflow
2. Select "Add Barcode to PDF" action
3. Configure input parameters (see below)

Parameters

Complete list of parameters for the Add Barcode to PDF action. Configure these parameters to control barcode placement and appearance.

Important: Parameters marked with an asterisk (***) are required and must be provided for the action to function correctly.

Parameter	Type	Description	Example
Input Data Type***	String	PDF Input Format Selection • Choose the format of your PDF data input • PDF4me supports multiple input types with different field requirements • Options: Binary Data, Base64 String, or URL	Binary Data
Input Binary Field	Binary	Binary PDF File Input (Required if Binary Data) • Reference PDF file from previous n8n node or file upload • PDF4me processes binary PDF files with automatic format detection • Required when Input Data Type is "Binary Data"	{{ $binary.data }}
Base64 Document Content	String	Base64 Encoded PDF Input (Required if Base64 String) • Provide PDF data as base64 encoded string • PDF4me automatically decodes and processes the PDF content • Required when Input Data Type is "Base64 String"	UEsDBBQABgAI...
File URL	String	Public PDF URL Input (Required if URL) • Provide a public/open permission URL to the PDF file • PDF4me downloads and processes the file from the provided URL • Required when Input Data Type is "URL"	https://abc.com/xyz.pdf
Barcode Text***	String	Barcode Content Data • Specify the text, data, or URL to encode in the barcode • This content determines what the barcode contains when scanned • Supports alphanumeric characters, URLs, and special data	PDF4me Barcode Sample
Barcode Type***	Enum	Barcode Format Selection • Choose from 100+ barcode types (1D linear, 2D matrix, postal, healthcare) • Different types support varying data capacities and scanning requirements • Select based on industry standards and use case requirements • Common types: QR Code, Code 128, Data Matrix, Aztec, PDF417, EAN-13	QR Code
Pages***	String	Page Range Specification • Define which pages should receive barcode enhancement • Use comma-separated values and ranges for flexible targeting • Examples: "" (all pages), "0" (first page), "0, 2, 4" (multiple), "1-5" (range) • Essential for precise barcode placement control	1-3
Horizontal Alignment***	String	Barcode Horizontal Position • Control the horizontal placement of the barcode on the page • Options: Left, Center, Right • Determines barcode position relative to page margins • Essential for professional document layout	Center
Vertical Alignment***	String	Barcode Vertical Position • Control the vertical placement of the barcode on the page • Options: Top, Middle, Bottom • Determines barcode position relative to page margins • Essential for professional document layout	Bottom
Height in mm***	String	Barcode Height Dimension • Set the height of the barcode in millimeters • Recommended: QR Codes (40mm), 1D Barcodes (20mm), DataMatrix (20mm) • Enter "0" for auto-sizing based on barcode type • Essential for barcode readability and scanning	40
Width in mm***	String	Barcode Width Dimension • Set the barcode width in millimeters • Use "0" for auto-sizing based on barcode type and data • Controls horizontal dimension for optimal scanning • Balance size with document layout	40
Margin Horizontal In mm***	String	Horizontal Margin Spacing • Set the horizontal spacing from page edge in millimeters • Controls distance between barcode and page boundaries • Works with horizontal alignment setting • Essential for proper barcode placement	20
Margin Vertical In mm***	String	Vertical Margin Spacing • Set the vertical spacing from page edge in millimeters • Controls distance between barcode and page boundaries • Works with vertical alignment setting • Prevents overlap with document content	20
Height In Pt***	String	Barcode Height in Points • Set the barcode height in points (1/72 inch) • Provides typography-based sizing for document layout • Use "0" for auto-sizing • Alternative to millimeter-based sizing	20
Width In Pt***	String	Barcode Width in Points • Set the barcode width in points (1/72 inch) • Provides typography-based sizing for document layout • Use "0" for auto-sizing • Alternative to millimeter-based sizing	20
Margin X In Pt***	String	Horizontal Margin in Points • Set the horizontal margin from page edge in points (1/72 inch) • Provides typography-based spacing for document layout • Works with horizontal alignment	10
Margin Y In Pt***	String	Vertical Margin in Points • Set the vertical margin from page edge in points (1/72 inch) • Provides typography-based spacing for document layout • Works with vertical alignment	10
Opacity***	Integer	Barcode Transparency Level • Range from 0 (invisible) to 100 (fully opaque) • 100 for standard scanning, 30-50 for watermark effects • Controls barcode visibility and background blending • Essential for professional document design	100
Display Text***	String	Barcode Text Display Position • Set the text position relative to barcode • Options: above, below • Controls where display text appears • Essential for barcode labeling and readability	below
Hide Text***	Boolean	Text Visibility Control • Control whether to hide barcode text display • true = hide text, false = show text • Allows for clean barcode presentation • Essential for minimalist design	false
Show Only In Print***	Boolean	Print-Only Display Control • Control whether barcode appears only in printed version • true = print only, false = screen and print • Useful for print-optimized workflows • Maintains clean screen display	false
Is Text Above***	Boolean	Text Positioning Control • Control whether text appears above the barcode • true = text above, false = text below • Provides precise text positioning control • Works with Display Text setting	false
Binary Data Output Name	String	Binary Data Output Mapping • Define the variable name for the generated PDF binary data • Used to access enhanced PDF in subsequent workflow steps • Essential for workflow automation and data flow • Default is "data" if not specified	data

Advanced Options

The following parameters are available in the Advanced Options section and are optional:

Parameter	Type	Description	Example
Custom Profiles	String	Custom Configuration Profiles • Set additional options using custom profiles • JSON-like format containing predefined parameters • Enables advanced barcode generation settings • Optional for specialized requirements	{ "outputDataFormat": "base64", "preserveMetadata": true }
Output File Name	String	Output Filename • Specify a custom name for the output PDF file • If not provided, system generates default filename • Supports dynamic naming from workflow variables • Helps with file organization	output_with_barcode.pdf

Output

Output Parameters

Parameter	Type	Description	Example
fileName	String	PDF4me enhanced PDF filename - The complete filename of the successfully generated PDF document with barcode enhancements with proper .pdf extension. PDF4me ensures unique naming and validates file format compliance for seamless integration with downstream processes	document_with_barcode.pdf
mimeType	String	PDF4me enhanced PDF MIME type - The MIME type of the generated PDF file with barcodes, indicating the file format for proper handling in web applications and file systems	application/pdf
fileSize	Number	PDF4me enhanced PDF file size in bytes - The exact size of the generated PDF file with barcodes in bytes, provided by PDF4me for storage planning, bandwidth optimization, and file transfer monitoring. Essential for enterprise document management and workflow automation	104989
success	Boolean	PDF4me barcode enhancement status indicator - Boolean flag indicating the success or failure of the PDF barcode enhancement process. PDF4me returns true for successful enhancements and false for any errors, enabling robust error handling in automated workflows	true
message	String	PDF4me enhancement status message - Human-readable status message providing details about the barcode enhancement process result. Includes success confirmation or error details for troubleshooting	Barcode added to PDF successfully

N8N Action Response

The PDF4me Add Barcode to PDF API returns a response that can be viewed in multiple formats. Choose the view that best fits your needs:

JSON

JSON Response Format

The raw JSON response from the API:

{
  "fileName": "document_with_barcode.pdf",
  "mimeType": "application/pdf",
  "fileSize": 104989,
  "success": true,
  "message": "Barcode added to PDF successfully"
}

Table

Table View

Response data in a structured table format:

Parameter	Value
fileName	document_with_barcode.pdf
mimeType	application/pdf
fileSize	104989
success	true
message	Barcode added to PDF successfully

Schema

Schema View

The data structure and types of the response:

1 item
fileName: AB document_with_barcode.pdf
mimeType: AB application/pdf
fileSize: # 104989
success: ☑ true
message: AB Barcode added to PDF successfully

Type Indicators:

• AB = String
• # = Number
• ☑ = Boolean
• {} = Object

Binary

Binary Data View

The actual enhanced PDF file data and metadata:

data
─────────────────────────────
File Name: document_with_barcode.pdf
File Extension: pdf
Mime Type: application/pdf
File Size: 240.0 KB

Binary Data Access:

• n8n Binary Object: $binary.data.data
• Base64 Content: Available for direct use
• File Operations: Ready for download, email, or storage

Use Cases

Inventory Management and Asset Tracking

• Automatically add unique barcodes to product catalogs, inventory sheets, and asset documentation for streamlined scanning and tracking operations in warehouses and retail environments
• Process shipping labels and logistics documents by embedding tracking barcodes that integrate with warehouse management systems for automated package routing and delivery confirmation
• Generate compliance documents with industry-standard barcodes for healthcare equipment, pharmaceutical packaging, and regulated products to meet FDA and international standards

Document Authentication and Security

• Enhance legal contracts and official documents with QR codes containing digital signatures, verification links, and tamper-proof identifiers for secure document authentication
• Process identification documents and certificates by adding unique barcodes that link to verification databases, ensuring document authenticity and preventing counterfeiting
• Create secure access documents with embedded barcodes that integrate with building security systems and visitor management platforms for controlled facility access

Marketing and Customer Engagement

• Generate promotional materials and marketing collateral with QR codes that link to product information, special offers, and interactive content for enhanced customer engagement
• Process event tickets and admission passes with unique barcodes that enable quick entry validation, attendee tracking, and post-event analytics for event management
• Create interactive business cards and contact materials with QR codes containing contact information, social media links, and portfolio access for seamless networking
