Split by Barcode - Smart Splitter for Make
PDF4me Split PDF by Barcode module delivers automated intelligent document splitting based on barcode detection within Make scenarios with customizable filter, type, and split control. This advanced separation service divides invoices, orders, batches, and documents using QR codes, DataMatrix, and barcodes, enabling automated document routing, batch separation, intelligent filing, and barcode-based workflows across cloud storage platforms and business applications.
Authenticating Your API Request
To access the PDF4me Web API through Make, every request must include proper authentication credentials. Authentication ensures secure communication and validates your identity as an authorized user, enabling seamless integration between your Make scenarios and PDF4me's powerful barcode-based splitting services.

Key Features
- Barcode Detection: Automatically finds and reads barcodes
- Multi-Type Support: QR codes, DataMatrix, and other types
- Smart Filtering: Text-based barcode filtering
- Flexible Splitting: Before, after, or remove barcode page
- Batch Grouping: Combine pages with same barcode

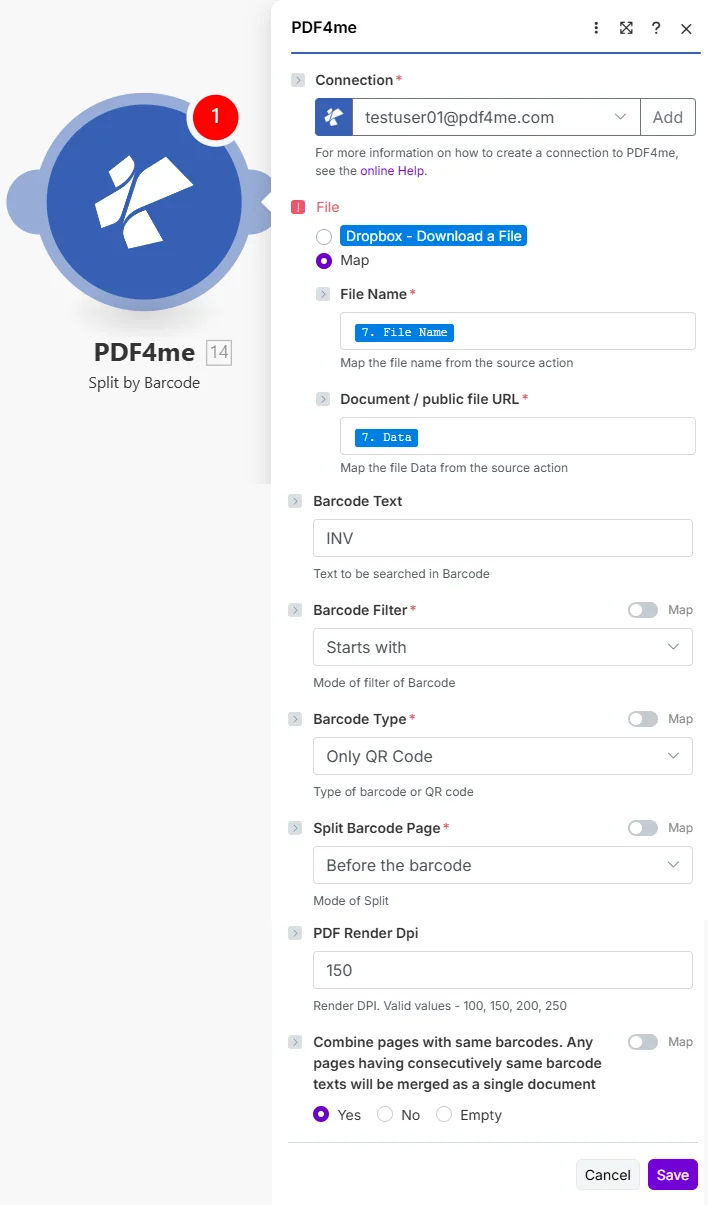

Parameters
Complete list of parameters for the Split PDF by Barcode module.
Important: Parameters marked with an asterisk (***) are required and must be provided for the module to function correctly.
| Parameter | Type | Description | Example |
|---|---|---|---|
| File*** | Radio | How the source PDF reaches the module • The radio lists your connected storage actions (for example Dropbox - Download a File) and Map • Choose Map to wire the fields below from earlier modules • File Name and Document / public file URL only appear once Map is selected | Map |
| File Name*** | File name | Source PDF | invoices_batch.pdf |
| Document / public file URL*** | File (binary data) | PDF Content | [PDF Buffer] |
| Barcode Text | Text | Search Text | INV |
| Barcode Filter*** | Dropdown | Filter Method • Starts with • Ends with • Contains • Exact text • Defaults to Starts with | Starts with |
| Barcode Type*** | Dropdown | Barcode Type • Any Type • Only QR Code • Only Datamatrix • Defaults to Any Type | Only QR Code |
| Split Barcode Page*** | Dropdown | Split Method • Before the barcode • After the barcode • Remove the page containing the barcode • Defaults to Before the barcode | Before the barcode |
| PDF Render Dpi | Number (whole, 0 or more) | Render Quality • Values: 100, 150, 200, 250 • Defaults to 150 | 150 |
| Combine pages with same barcodes | Yes/No | Group Same Barcodes • Yes - Merge consecutive same barcodes • No - Keep separate • Defaults to No | Yes |
Output
PDF4me may process the request as a background job, and Make waits for the result before the next module runs.
- Table
- JSON
Table View
| Field | Type | What it contains |
|---|---|---|
| Generated Documents | Array | The documents produced by the split |
| Generated Documents[].File Name | File name | File name of this document |
| Generated Documents[].Document | File (binary data) | Content (binary data) of this document |
| Generated Documents[].Document Url | Text | Link to this document, when returned as a URL |
| Generated Documents[].Barcode Text | Text | The barcode text found on this document |
JSON Response
{
"Name": "invoices_batch.pdf",
"Documents": [
{"Document": "[Buffer - Document 1]"},
{"Document": "[Buffer - Document 2]"}
]
}
