Populate an Excel Template from JSON in Power Automate: A 4-Step Dropbox Workflow with Aspose Smart Markers

Drop an Excel template that uses Aspose Smart Markers (cells written like &=RootData.Items.ItemName) into Dropbox, paste a matching JSON payload into a Power Automate flow, and the populated workbook lands back in Dropbox with totals already calculated. This guide walks through the exact four-action flow shown in the screenshots: Manual trigger, Dropbox Get file content using path, PDF4me Excel - Populate, and Dropbox Create file. Every field value comes from a real run; the input template, JSON payload, and output workbook are all linked at the end.

What you are building​

A four-action Power Automate flow that converts a designed Excel template plus a JSON payload into a fully populated workbook with live formulas. The same pattern works for invoices, inventory reports, payroll summaries, sales recaps, and any other Excel deliverable where the structure stays the same but the rows change every run.

What you need​

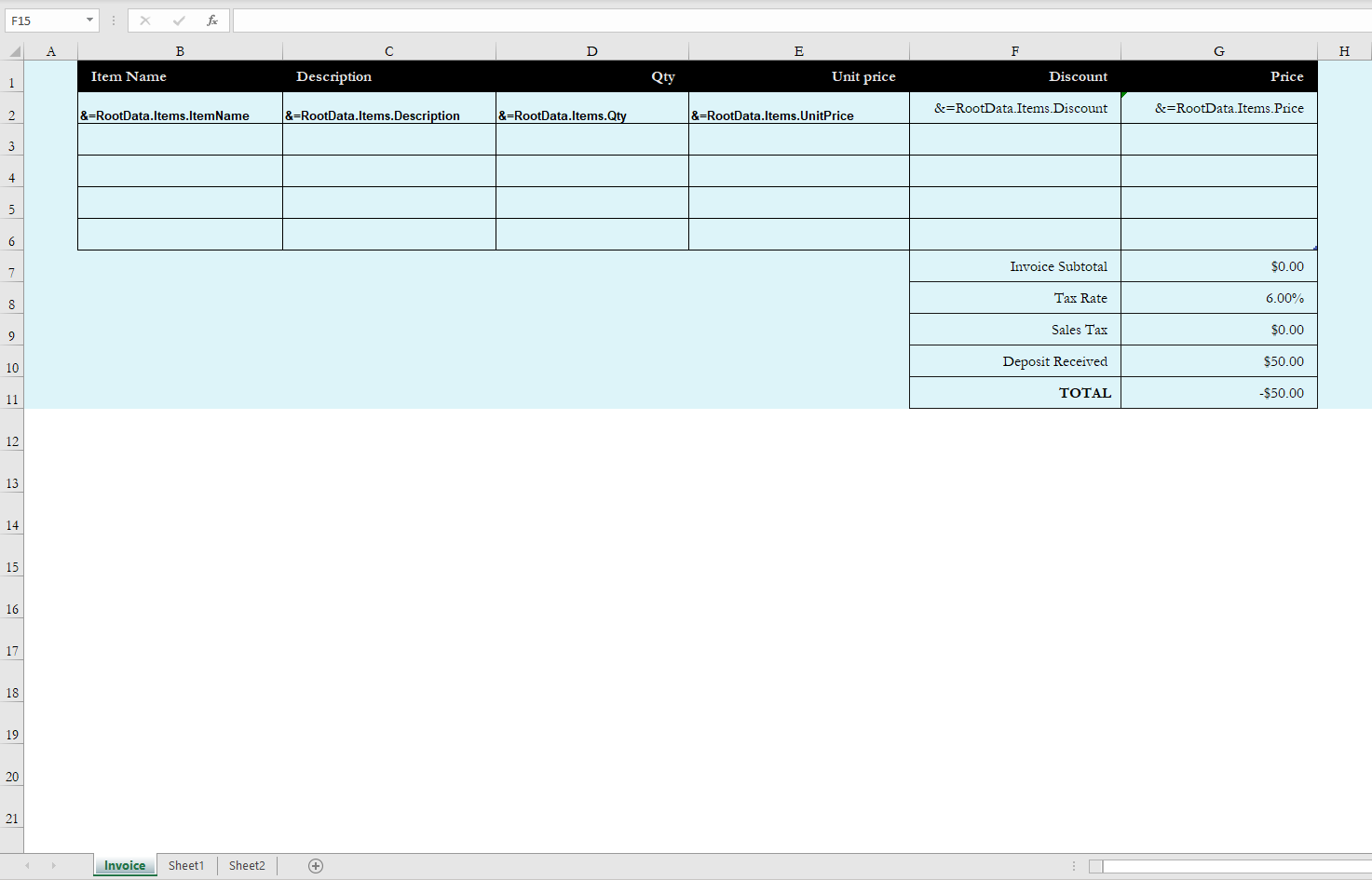

A tour of the input template​

Before you build the flow, it helps to see what Smart Markers actually look like inside the Excel file. Open the Invoice sheet of template.xlsx. Row 1 is the header. Row 2 contains the markers (one per column). Rows 3 to 6 are pre-formatted empty rows. Below that sits a totals block with a SimpleInvoice Excel Table aggregation.

The six markers are:

The totals block uses structured references instead of plain A1 addresses:

G7  =SUM(SimpleInvoice[Price])
G9  =IFERROR(G7*G8,"")
G11 =SUM(G2:G4)-G10

When Excel - Populate expands the marker row from 1 record to 3, the SimpleInvoice table range automatically grows, and SUM(SimpleInvoice[Price]) keeps summing the right column. That is the entire reason this pattern beats writing per-row formulas manually.

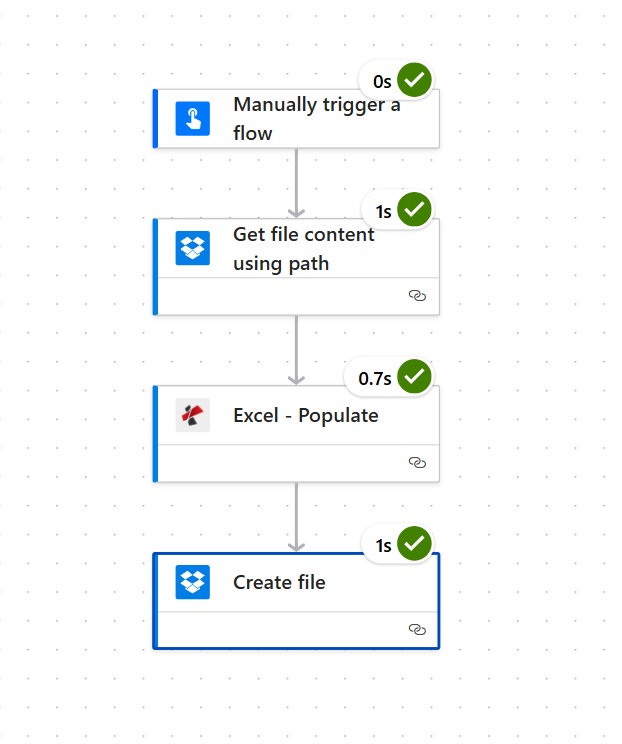

Build the flow​

Action 1: Manually trigger a flow​

For testing, the manual trigger is fastest. In production, replace it with When a file is created (Dropbox), When an item is created or modified (SharePoint), Recurrence, or any event that gives you a fresh JSON payload.

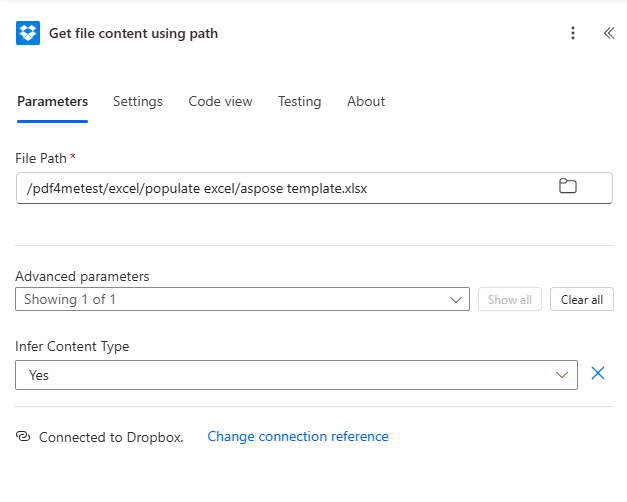

Action 2: Dropbox - Get file content using path​

Set File Path to the full Dropbox path of the template, including the filename:

/pdf4metest/excel/populate excel/aspose template.xlsx

Under Advanced parameters, Infer Content Type is set to Yes (the default).

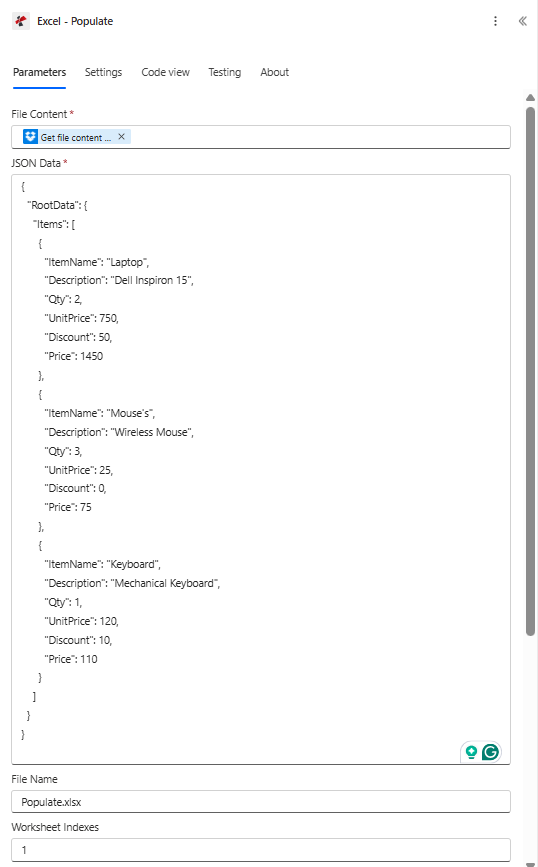

Action 3: PDF4me - Excel - Populate​

This is where the merge happens. Search for PDF4me in the action picker, then pick Excel - Populate. Configure these fields:

The full JSON Data payload (copy-paste from sheet1-data.json):

{
  "RootData": {
    "Items": [
      { "ItemName": "Laptop",   "Description": "Dell Inspiron 15",    "Qty": 2, "UnitPrice": 750, "Discount": 50, "Price": 1450 },
      { "ItemName": "Mouse's",  "Description": "Wireless Mouse",      "Qty": 3, "UnitPrice":  25, "Discount":  0, "Price":   75 },
      { "ItemName": "Keyboard", "Description": "Mechanical Keyboard", "Qty": 1, "UnitPrice": 120, "Discount": 10, "Price":  110 }
    ]
  }
}

Expand Advanced parameters for the four optional controls. The defaults are usually correct, but the screenshots show what each value looks like in the UI:

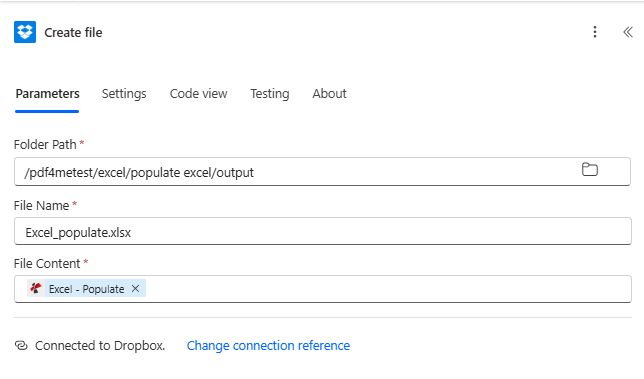

Action 4: Dropbox - Create file​

The final step uploads the populated workbook back into Dropbox:

That is the entire flow. Save and click Test.

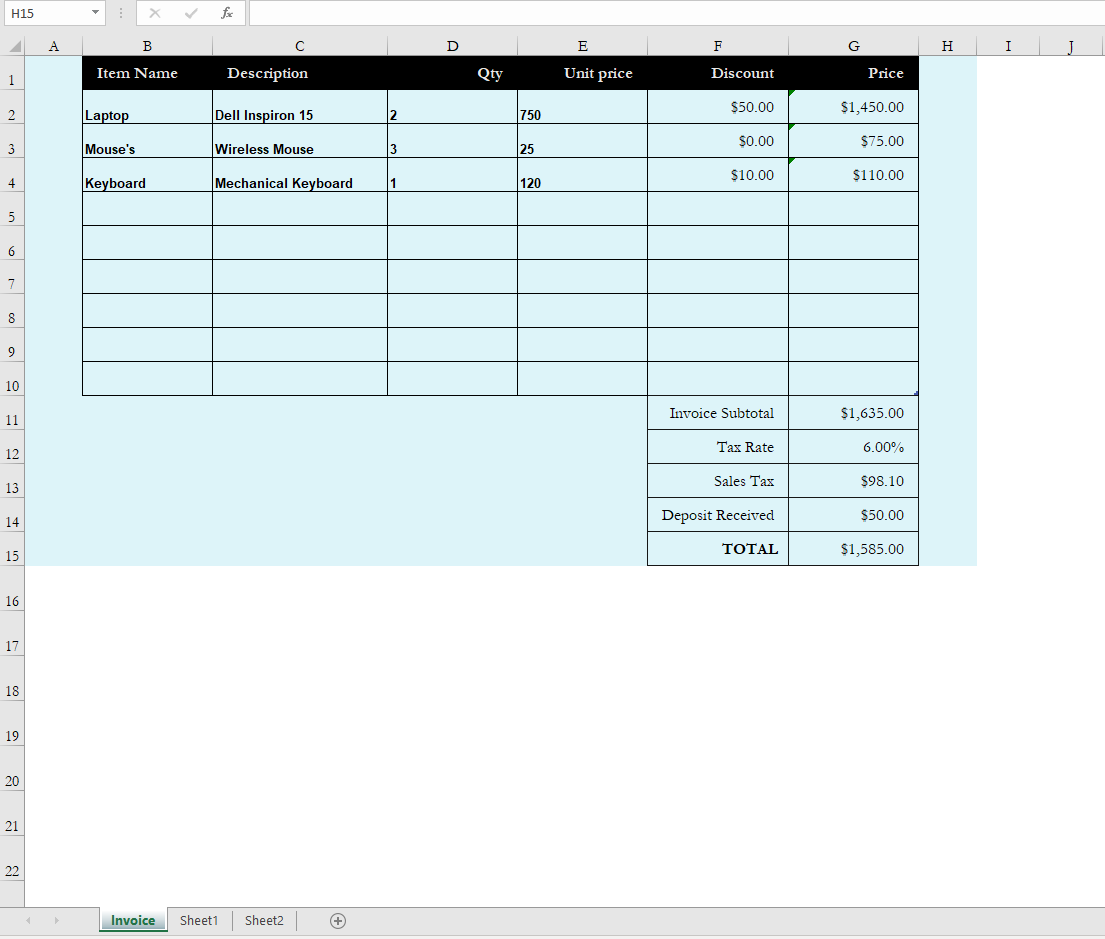

The result​

When you open Excel_populate.xlsx from the /output folder, the Invoice sheet now carries the three records on rows 2 to 4, and the totals block has computed live values from the SimpleInvoice table aggregation.

The exact numeric proof that formulas recalculated correctly:

Download the actual output workbook produced by this run: output-excel-populate.xlsx.

Troubleshooting​

A column comes out empty. Your JSON property name does not match the marker field name. Markers are case sensitive. &=RootData.Items.ItemName will NOT pick up itemName from the JSON.

The wrong sheet got populated. Check Worksheet Indexes. The value is 1-based (not 0-based). Pass 1 for the first sheet, 2 for the second, etc. Leave empty to populate every sheet.

Totals show $0.00 after the run. Calculate Formulas is set to No. Switch it to Yes.

Strings that look numeric got converted to numbers (or vice versa). Toggle Strict JSON Strings. Yes keeps quoted JSON primitives as text. No coerces them.

Decimal separators or date formats look wrong for your locale. Change Culture & Language Settings. en-US, fr-FR, de-DE, ja-JP, etc. are all valid.

The data lands but only fills the first row even when you sent multiple records. The marker was authored with the (noadd) modifier (&=RootData.Items.ItemName(noadd)). Remove the modifier so the engine inserts new rows.

When to use this pattern​

• Invoice generation from CRM line items. Pull lines from Dynamics, Salesforce, or HubSpot into a JSON Items array; render with a designed Excel invoice template.
• Monthly inventory and sales reports. Recurrence trigger plus Dataverse List rows plus this flow gives you a polished Excel deliverable in minutes.
• HR roster, payroll summary, expense reports. Anywhere a designed Excel layout meets fresh row data.
• Excel deliverables a recipient will open and edit. Excel - Populate returns native .xlsx (not PDF), so recipients can sort, filter, and adjust formulas downstream.
